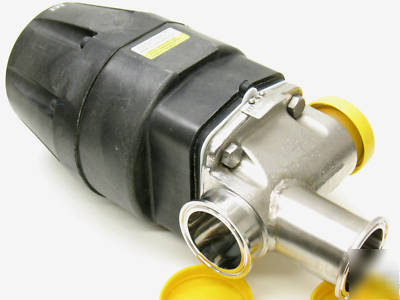

Itt pure-flo sanitary valve, 2" tri-clover, w/ actuator
ITEM: ITT PURE-FLO Sanitary Valve, Point-of-Use GMP w/ Purge Body Type, 2" Tri-Clamp (Tri-Clover Type) Connections on ALL Ports, w/ ITT #16 Advantage Actuator, Spring-to-Close Reverse Acting (Air-to-Open, Normally Closed), 90 PSI Spring, PTFE Diaphragm, Valve Code: (nameplate reads "020-4697-02169-00R" and does not state the model number but it appears to be:) 2-F-419-6-3-4-A217
MODEL NUMBER NOMENCLATURE (based on observation):
F = 316SS Forged Body, Pressure Rating CWP150
6 = Interior Finish: Ra 25 Microinch Max. Sanitary Polish
3 = Exterior Finish: Ra 35 Microinch Max. Sanitary Polish w/ Welds Scotchbrite
A217 = ITT Advantage Actuator, Reverse Acting, Size #16 w/ 90 PSI Spring
WHAT THE MANUFACTURER STATES ABOUT THE CURRENT PRODUCT:
"The GMP fabrication can be utilized to virtually eliminate dead legs in the design of point-of-use outlets in a typical WFI distribution loop. The process fluid flows through the valve body. As demand warrants, the valve is opened, providing an uncontaminated sample untainted by bacterial growth or contaminants which may accumulate in outlets greater than 6D. The outlet can also be utilized as a steam condensate drain or as a divert port. The valve body has been modified to accept a third port of the same diameter, positioned adjacent to the weir at the bottom of the valve."
CONDITION: Used, in EXCELLENT, VERY CLEAN CONDITION.
SELLS ELSEWHERE FOR APPROX.: $1,200+
