New exadigm XD2000 wireless credit card terminal - * *

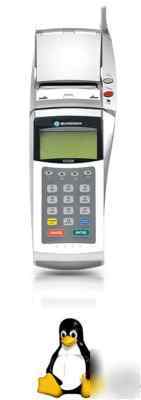

Exadigm XD2000 CDMA Wireless Terminal
Complete Wireless Terminal Set
ExaDigm has taken a fresh new approach to POS connectivity with the launch of the XD2000 Mobile Solution and in turn created a whole new way of doing business. With its unique modular format and interchangeable modems supporting IP Ethernet WiFi, CDMA, GSM, Bluetooth and dial connections, the XD2000 offers speed, security, portability, mobility, changeability and universal connectivity.
This unit is the CDMA witha DX modem(USB,Dial)
Supporting Ethernet, WiFi, CDMA, GSM, Bluetooth and Dial-up connectivity
2 x RS-232 ports for peripherals including external PIN pads and check readers
The XD2000 offers the option of integrating a Smart Card Reader into the front of the terminal at the time it is configured at the factory. The Smart Card Reader supports ISO14443 Type A and B and up to 4 SAMs and is EMV Level 1 compliant.
Battery pack with built-in charger
High capacity Lithium-ion 7.2V DC removable battery
APM - Advanced Power Management
132 x 64 pixel graphical LCD with back lighting
32 F to 104 F (0 C - 40 C)
3x4 back-lit numeric keypad with 4 soft function keys
8MB Flash ROM expandable to 32MB
Interchangeable modems in a range of configurations of the following communication protocols:
Fast connect dial modem (Bell 103/212a, 300/1200/2400 bps V.21, V.22, V.22bis asynchronous and 1200/2400 bps synchronous)
10 MPS integrated Ethernet port
2 x RS-232 port for peripherals including external PIN pads and check readers
32 bit ARM 7 RISC microprocessor / 100 MHz processing speed
Integrated graphic thermal printer, 57mm large capacity paper roll capacity
12 lines per second, 24 or 32 columns
Multi-language font capability that can be scaled double-high, double wide, or double-high and double wide
QUESTIONS?? CALL (***)-441-6670
All items guaranteed to work on arrival!
Exadigm XD2000 CDMA Wireless Terminal
