Upb simply automated #zpciw wire in phase coupler

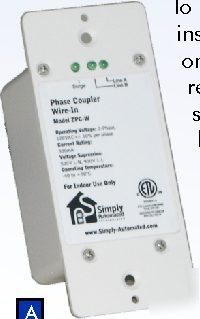

You are Purchasing a new ZPCIW Wire In Style Phase Coupler. This product can be used for New or Remodel Residential Projects. This item is Sold and Priced per each Phase Coupler. Model ZPCI-W Wire-in Universal Inverting Phase Coupler is designed for mounting inside a junction box, beside the breaker panel. Phase couplers boost powerline signals by providing a bridge between the two, 120 VAC electrical phases (A and B) in a splitphase, 240 VAC home. Without a phase coupler signals travel out to the street-side transformer on one phase and comeback in the home inverted on the other phase; usually at a lower (attenuated) level. In homes up to 2000 Sq. Ft. and within 100 feet of the transformer, phase coupling may not be needed for UPB. However, as the size of the home and distance from the transformer increase, phase coupling becomes more important. A Universal Inverting Phase Coupler is recommended in every main breaker panel and sub-panel to ensure maximum signal strength.
