18" x 3HP spdl bridgeport explorer i cnc vertical mill,

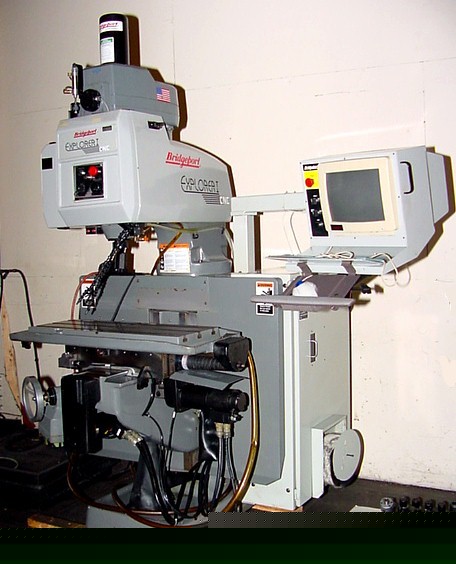

18" X 3HP Spdl Bridgeport EXPLORER I CNC VERTICAL MILL,
18" X Axis 3HP Spindle Bridgeport EXPLORER I CNC VERTICAL MILL, DX 32 Control 3-Axis,Rigid Ram, Chom
BRIDGEPORT THREE-AXIS CNC VERTICAL MILLING MACHINE
MODEL: EXPLORER I, S/N EXP 134, NEW 1997
OVERALL SIZE OF TABLE .................. 16-1/8" X 42"
TABLE WORKING SURFACE .................. 12-1/2" X 34"
NUMBER OF T-SLOTS ...................... 3 ON 4-3/8" CENTERS
LONGITUDINAL (X) ................. 18"
CROSS (Y) ........................ 12"
VERTICAL, KNEE (MANUAL) .......... 14-1/2"
QUILL (Z) ........................ 5"
THROAT DISTANCE ........................ 14-1/2"
UP AT GAGE LINE .................. 6.37"
MAXIMUM UNIFORM TABLE LOAD ............. 300 LBS.
TWO RANGES ....................... 60-4,200 R.P.M.
SPINDLE TAPER .......................... #30
FEED RATE, ALL AXES .................... 0.1-250 I.P.M.
FEED INCREMENTS ........................ 0.1 I.P.M.
JOG RATE ............................... 150 I.P.M.
RAPID TRAVERSE RATE, ALL AXES .......... 250 I.P.M.
APPROXIMATE WEIGHT ..................... 3,150 LBS.
F-B .............................. 64"
L-R .............................. 64"
HIGH ............................. 87"
BRIDGEPORT #DX-32, DOS BASED, 32 BIT PC CONTROL
w/ NUMERIC KEYPAD AND FUNCTION KEYS WHICH ARE LINKED
TO A COLOR-CODED ON SCREEN DISPLAY. FULL FEATURE
CAPABILITY INCLUDES THE USE OF VGA COLOR GRAPHICS AND
MULTIPLE WINDOWS TO PROMPT THE USER THROUGH ALL
CONTROL FUNCTIONS. THE CONTROL ALSO INCLUDES A
BUILT-IN 3.5" DISKETTE DRIVE, A 80 MEGA-BYTE HARD
DISK DRIVE AND A RS-232 INTERFACE.
BALL SCREWS AND DC SERVO MOTORS FOR ALL AXES
SERVO POWER FEED ON KNEE UP & DOWN
INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE.
