Lambda-dual-regulated-power-supply-lq-531-lq-532-guar

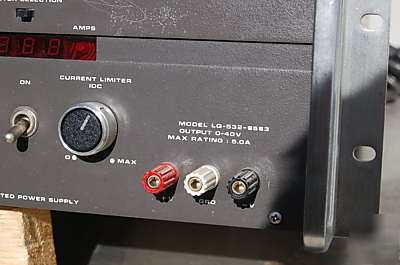

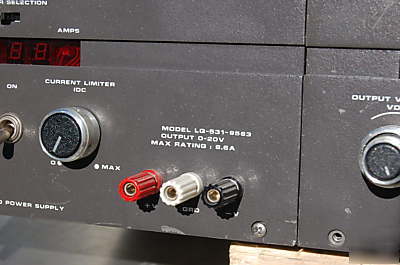

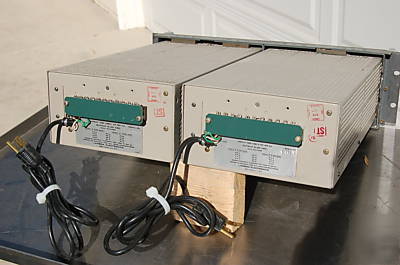

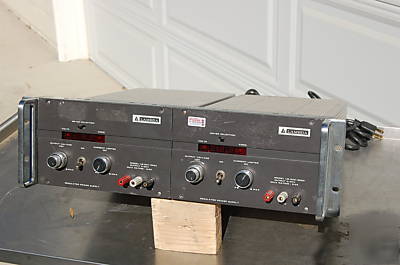

NO RESERVE!!!!! Power supplies Excellant Shape In Working Condition!! Input 105-132VAC, 47-440Hz, LQ-532-9663 - PS 0-40V 5A single LED Output + LQ-531 - PS 0-20V 8.6A single LED Output Fits 19 " rack Mount LQ-Series DC Power Supply Pure DC for low noise, high reliability applications Ripple: 150 uV Regulation: .005% Pure DC best describes these specifications that make the LQ series ideal for low noise ATE, lab, or any application requiring high quality and reliability. The LQ series is designed using a multi function voltage regulator IC with built-in chip temperature regulation. All models feature a digital readout, constant voltage or constant current operation, and packaging designed for bench or rack mount use. Grade 1 design Regulated Voltage: Regulation, Line: 0.005% + 0.5 mV for line variations from 105 to 132 VAC. Regulation, Load: 0.005% + 0.5 mV for load variations from 0 to full load Ripple and Noise: 1mV pk-pk, 150 uV RMS with plus or minus terminal grounded. Temperature Coefficient: +/1 (0.005% Vo + 10 uV)/deg C with external programming resistors Remote Programming Resistance: 1000 ohm/Volt nominal Remote Programming Voltage: Volt per Volt Constant Current: Range: 1% to Iout Max Regulation, line: 1 mA max for line variations from 105 to 132 VAC. Regulation, load: 2.5 mA max for load changes from 0 to rated DC voltage. AC Input Line: 105 to 132 VAC (47 to 440Hz) standard input. (derate output by 10% at 50Hz). Consult factory for operation above 63 Hz. Operating Temperature Range: Continuous duty from 0 to 60 degrees C with appropriate deratings above 30 degrees C. Cooling: Convection cooled, no fans or blowers required.
