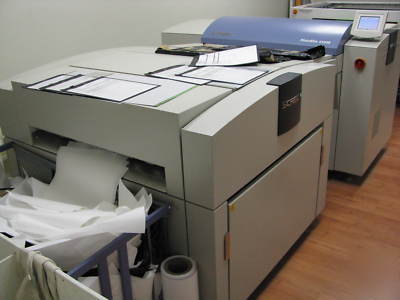

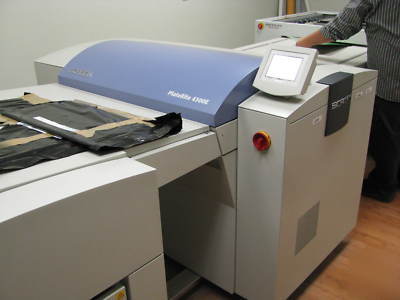

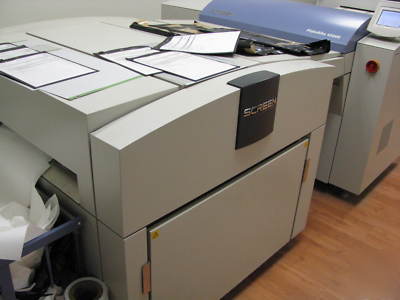

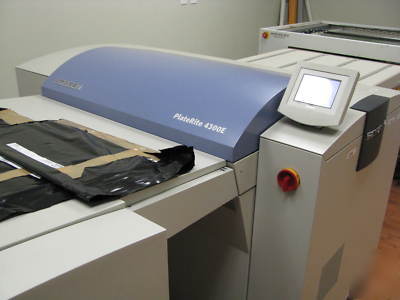

Screen 4300E plate maker with autoloader
PlateRite 4300E specifications
32-channel infrared laser diodes
16-channel infrared laser diodes
Maximum 830 x 660 mm (32.6" x 25.9"); Minimum 324 x 370 mm (12.8" x 14.6")
(Compatible with 304 x 370 mm [12 " x 14.6"] plate sizes as a factory option)
Maximum 830 x 633 mm (32.6" x 24.9")
[15-mm (0.5 ") leading edge clamp and 12-mm (0.4") trailing edge clamp]
Thermal (infrared sensitive) plates
0.15 to 0.3 mm (5.9 to 11.8 mil)
1,200/2,000/2,400/2,438/2,540/4,000 dpi
(1,200 dpi resolution when upgrading to the PT-R4300S from the PT-R4300E)
(724 x 615 mm/28.5 " x 24.2")*2
Semiautomatic loading (standard)
Fully automatic loading (optional)
SCREEN, Heidelberg, Protocol, Komori, and others
Main unit: 1,770 x 1,028 x 1,185 mm (69.7" x 40.5" x 46.7")
Blower unit: 429 x 600 x 361 mm (16.9 " x 23.7" x 14.3")
Recommended: 21 to 25 C (69.8 to 77 F)
Required: 18 to 26 C (64.4 to 78.8 F)
Relative humidity: 40 to 70% (no condensation)
Single phase 200 to 240 V, 20 A, 4.0 kW
Single-cassette autoloaders SA-L 4100/SA-L 4300II, multi-cassette autoloader MA-L 4300II, processor bridge AT-T 4000,
Output suitable for 2-page or 4-page presses
Support for a wide range of plate sizes
The PlateRite 4300S and PlateRite 4300E can handle the plate requirements of new larger-format 4-page presses. Both support a maximum plate size of 830 x 660 mm (32.6" x 25.9"), and are also capable of supporting some of the smaller 2-page presses with a minimum plate size of 324 x 370 mm (12.8" x 14.6")*.
The PlateRite 4300S and PlateRite 4300E offer an unbeatably flexible and reliable solution for fast output of a wide variety of plate sizes.
* 304 x 370 mm (12" x 14.6") support is available as a factory option.
Auto-balance for different plate sizes
Auto-balance lets you use different sized plates without making any manual adjustments for correct drum balance.
All you do is select the type of plate you want to use and the PlateRite 4300S and PlateRite 4300E automatically make the necessary adjustments to create perfect drum balance for each plate size.
The PlateRite 4300S and PlateRite 4300E also feature separate loading and unloading bays, so that one plate can be readied for loading while another is being exposed.
Bring out the ideal CtP environment with a simple upgrade
For the ideal environment for your increased productivity needs, you can upgrade your PlateRite 4300E to the PlateRite 4300S* by simply exchanging parts required for the PlateRite 4300E.
This reduces wasted expenses and improves the operational efficiency of your platesetter.
* Please see the specifications sheet for information on the resolutions available when upgrading to the PlateRite 4300S.
Productivity-enhancing automation
Optional inline punching and automated plate loading
Screen s automatic inline punching system is the industry leader for enabling perfect register on press. It does this by performing two types of punching (for press and platesetter registration) at the same time, immediately before mounting the plate on the drum.
This method gives much greater registration accuracy compared with either manual or off-line punching, eliminates human error and achieves faster press makeready.
Punch blocks from Heidelberg, Komori, Bacher, Protocol, Stoesser, Grapho Metronic and Screen are available, covering the full range of sizes for all major press types. Up to four punch blocks can be mounted and selected according to plate size and press type.
The PlateRite 4300S and PlateRite 4300E can be configured for efficient automatic operation with Screen s optional autoloaders, which are acclaimed in the market for their reliability and precision. Both the PlateRite 4300S and PlateRite 4300E can be paired with the SA-L4300II single-cassette autoloader.
This high-quality unit can hold up to 100 plates and automatically removes interleaf paper before loading each plate.
It is also possible to upgrade from the SA-L 4300II to the MA-L 4300II multi-cassette autoloader, which comes standard with three cassettes and enables up to 300 plates of three different sizes to be loaded and imaged in the PlateRite 4300S without operator intervention.

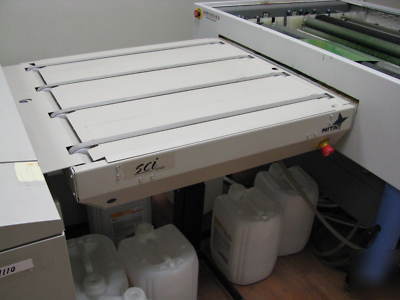

The PlateRite 4300S and PlateRite 4300E can also be paired with the more economical SA-L 4100* single-cassette autoloader. Both the PlateRite 4300S and PlateRite 4300E are supported by an automatic processor bridge, which extends process automation all the way through to the plate processor.
* The SA-L 4100 has a capacity of 50 plates and requires manual interleaf removal.
