Trimble 5602 autolock DR200+ robotic t/station vgcond.

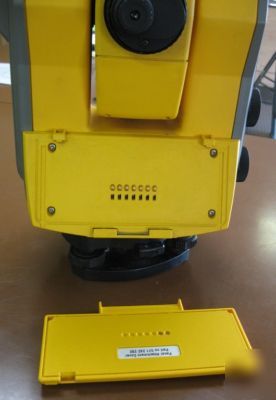

Trimble 5602 AutoLock DR200+ Total Station & Poles . Semi-Robotic- there are few items to add for a complete robotic system.

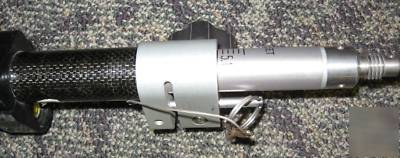

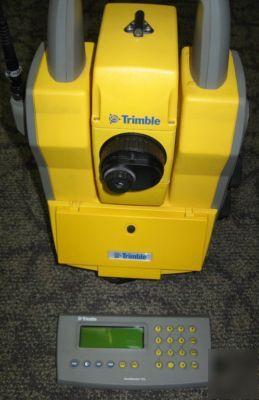

It has the Carbon Fiber prism pole and the Geodimeter CU unit. You will need the ACU or any Data Collector unit, the Prism with diode for pole, a cradle for attaching ACU to prism pole (for one-person operation) the batteries and the 2 chargers (one for the Total Station battery and one for the ACU) and you will have a fully robotic unit.

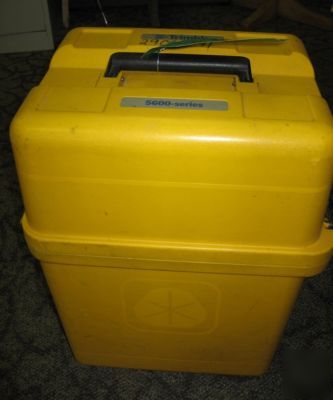

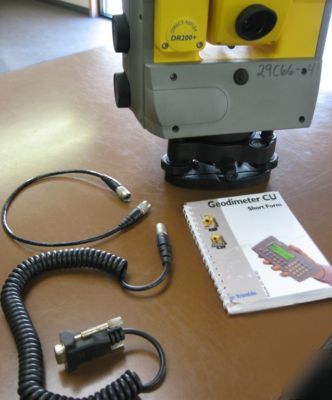

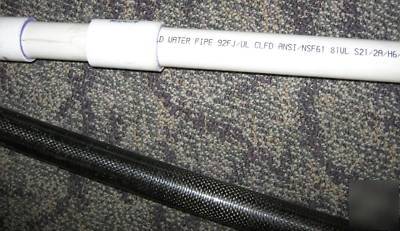

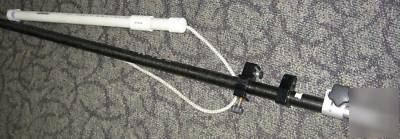

This sale includes: The 5602 T/Station, the HD carrying case, Manual, Cables, Geodimeter CU, Carbon Fiber prism pole and water stick.
* Distance Measurement: 5,500m to a Single Prism
* Distance Measurement: 600m against a White Object
* The 5602 Autolock DR200+ can be used for most survey and engineering applications.
Autolock technology enables semi-robotic operation, with measuring and recording taking place at the total station. The 5600 series seeks out the RMT target ( Active Remote Measuring Target ), locks to it, and follows it during movement between points. No fine adjustments needed, no focusing, no problems working in the dark ( the instrument will locate the target in any situation ), and no work-related injuries from constant turning of the total station. In most cases the the Autolock feature makes it possible to stake out and gather survey data as fast as the rodman can move.
The 5602 DR200+ total station is ideal for measuring stockpiles, excavations, cuttings, mine high walls in addition to visible but inaccessible property boundaries without gaining land access. You can also measure overhead cables, tunnels, bridges and elevations quickly, safely and easily even in live traffic situations. The DR200+ uses the "time-of-flight" measurement technique based on the pulse measurement principle which measures the time for a very short transmitted pulse to travel to the target and back. The instrument offers four-speed servo operation to provide variable speed, faster, smoother and more accurate aiming. Servo combined with DR gives you automated measurements and additional upgrade opportunities to increase your productivity.
This Total Station is an excellent example of a precision engineering tool. It is a reliable and robust instrument in good working order.
