Trinocular stereo microscope & 3 mp digital cam + video
Up for sale is a brand new Trinocular Stereo Macroscope with a 3 Mega pixel digital camera mounted to the Trinocular photo port. Great for taking pictures of electronic parts, mineral samples, or biological specimens. The software included also has measurement capabilities. Please see the technical specifications below. Just load the software on your computer, plug in the USB wire and you're ready to go exploring.
The digital microscope camera is removable for upgrading in the future or before purchasing. One can also use the camera on other trinocular microscopes just by switching the nose piece into the scopes photo port. Also included are adapters so the you can use the camera placed into the eyepiece of standard microscopes you may have on hand.
The macroscope is large, durable with a good weight. This is not a toy.
Illumination is from above and below for better clarity.
Description of Macroscope: 20x, 40x Trinocular Stereo Head: Binocular, 45 inclined Head Rotates: 360 Magnification: 20x 40x Eyepiece(s)/ Field of View: WF10x ,20mm Objective Sizes/ Dim Built in 2x, 4x Objective Objective Nosepiece: Rotates Condenser: N/A Diaphragm: N/A Interpupilary Range: 55mm~75mm Working Distance 90 mm Focus System: Side Focusing Knobs Illumination: Adjustable halogen lighting Voltage 110v Stage Dimensions 95mm Specimen Plates: Glass, off white Others - Body Material: Aluminum alloy & Copper Finish / Color: Grey/ Silver Spare Bulbs: 12V10W Halogen Fuse 2A250V Additional Accessories Dust cover, fuse Phy Size (LxWxH) (inch) 11.5x9x16 Physical Weight (oz.) 182 oz or 11 pounds -6 ounces
* Microscope is constructed with high quality optical glass
* Microscope can be used in various applications from analysis of electronic components to advanced medical research
* Ease of use features makes it an ideal microscope for any school or college student
* Equipped with transmitted illumination feature
* Easy out-of-the-box set-up
* Two separate light paths in this microscope results in a true stereo, three dimensional image of the specimen or object
* Built-in coarse and fine focus adjustments
* The trinocular (or third) lens can be used for digital imagery or second-party viewing and demonstration
* Head rotates 360 degrees
* Transmitted and oblique illumination
* Adjustable interpupillary distance between 55 mm and 75 mm
* Includes 12-volt 10-watt spare bulb, 2A 250-volt spare fuse, 110-volt power cord, 2 specimen plates, lens cleaning tissue and plastic dust cover
Description of 3.0 Mega Pixel Microscope Camera
Measurement software and calibration standard included
One Year Warrantee against manufacturers defects!
Free software updates for life.
3.0 Mega pixel Microscope Camera, with calibration slide, 0.5x nosepiece 23mm insertion diameter, and 30mm/30.5mm adaptor, and 30.5mm c-mount.
I am a retired organic chemist/scientist who spent his life assembling molecules with the use of light. These days I spend my time teaching the next generation in high school. If you have any questions about this camera you can utilize my technical expertise. You may also notice that I sell herbal capsules. I've spent allot of time looking at herbs from around the world for medical use.
The TCA-3.0 color CMOS camera package is easy to use, is compact in size, with simple installation and user friendly software. High quality images at an economical cost.
Tsview, the viewing program, can work under windows 2000, XP or vista,
1.2 Recommended System requirements
* Please confirm that the computer is equipped with USB2.0 interface before using the camera.

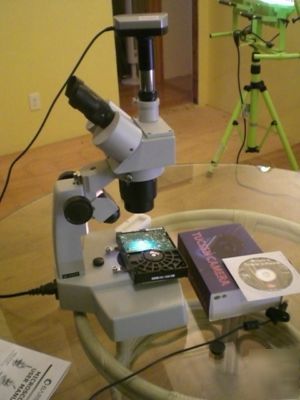

Digital camera mounted on a Trinocular microscope.
The actual digital camera with the 0.5X nose piece not screwed on.
Digital camera mounted with 0.5X nose piece on a trinocular microscope
0.5X Nose piece with 30 mm (millimeter) and 30.5 mm adaptor rings
This is what you actually receive. One Digital camera 3.0 Mega pixels with USB interface, 0.5X nosepiece at a diameter of 23mm, 30mm and 30.5 mm microscope adaptor for microscopes which have different diameter eye piece holders, a 0.01 mm gradient for calibration, and a CD which contains the imaging software for video and still image capture, and instruction manual.
The software provides a user-friendly platform to control versatile Tucsen camera view, editing images, and measuring images. This software is supplied to all Tucsen camera users.
TCC-3.3ICE-N cooled CCD camera
The software in "Detect Camera" mode automatically
Other available Microscope cameras and accessories from TUCSEN
C and CS-mount using adaptor ring
Image size, brightness, gain, exposure time,RGB
