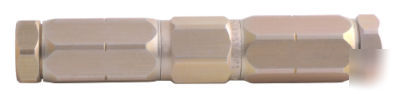

50 ppc TPS500P3 3-pc splice connector 500 P3 cable frb
PPC 3-piece splice connectors designed to handle the challenges of today s digital cable networks including: high speed data, telephony, and performance beyond 1 GHz. PPC s hardline connectors are designed for all major CATV cable manufacturers.
3 Piece Product Specifications
Return Loss: Minimum -30 dB to 1 GHz
Insertion Loss: .05 dB at 500 MHz, .1 dB at 1 GHz
RF Shielding Effectiveness: -120 dB
Operating Temperature: -40 F to +140 F (-40 C to +60 C)
AC Current (continuous): 20 Amps. Max
Meets or Exceeds all SCTE specifications
Construction for 3-Piece Hardline Connectors
Heavy-duty 6262 alloy aluminum construction for superior corrosion resistance
Gold iridite plating for added protection
Ultraviolet-resistant EPDM O-Rings
Antigalling and long-life lubricant
Contacts: brass with tin plate for long life, impervious to aging and extreme environmental conditions
Withstands 40 PSIG pressurization
External 5/8-24 mounting threads.
Others Offer for $9.65/ea Not Here!
Why pay full price - Found in the warehouse need to move.
