2 layers tqfp TQFP44 soic smt prototype board atmel pic

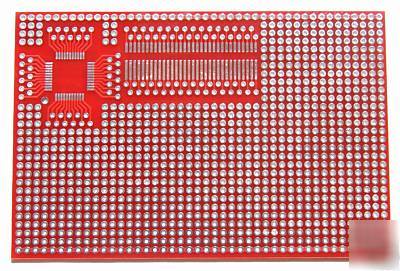

Press for view in large resolution TQFP-44 prototype board: top side
Press for view in large resolution TQFP-44 prototype board: bottom side
2 layers TQFP-44, SOIC, DIP (DIL) and SMT 0805 prototype board with prototype area
This 2 layers prototype board can be can be used by developers who want to quickly start working with any TQFP-44, SOIC or DIP (DIL) integrated circuit.
* One TQFP-44 PCB placement on top side of board. Can be used for mounting any TQFP-44 package for example ATmega8 or other chip. Pin-to-pin grid is 0.8 mm (0.0315"). All pins of TQFP-44 placement have pads for soldering any wire or connector (extension pads)
