24â€/32†x 120â€cc ikegai removable gap bed lathe

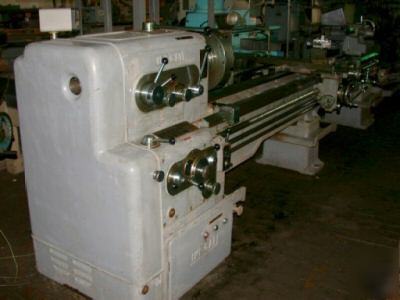

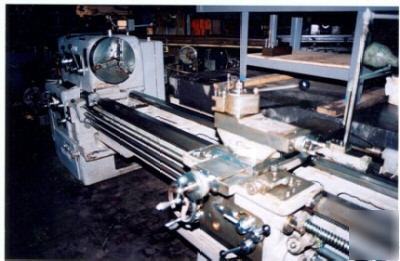

24 /32 x 120 cc IKEGAI Removable Gap Bed Lathe, Model DA-25, S/N 9796T, new 1966
Maximum swing over bed ways 24.4
Maximum swing over cross slide 15.35
Maximum length of gap from front of chuck 9
Tailstock spindle diameter 2-15/16
Tailstock spindle taper No. 5 M.T.
44 Longitudinal feeds 0.00136-0.0937 IPR
44 Cross feeds 0.00044-0.0315 IPR
Hydraulic tracer attachment (less power unit)
2-speed drilling type tailstock
15 diameter 3-jaw universal chuck
Quick-change tool post with toolblock and tool
3-point 7 diameter capacity steady rest
3-point 6 diameter capacity steady rest
(2) slide out chip pans with coolant pump
15 H.P. 3/60/220-440 volt motor with controls
Dimensions: 189 L x 56 W x 61 High
Approximate weight: 12,500 lbs.
