3PC 500 line rev IP54 6KRPM quadrature optical encoder

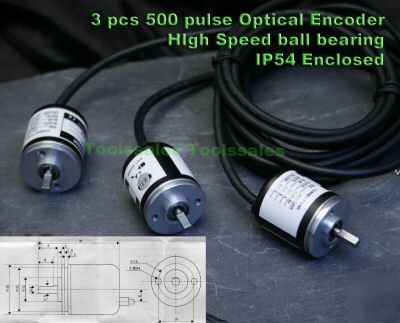

3 units of 500 step, IP54 fully enclosed, max 6000rpm,High speed rotary encoder.
This fully IP54 enclosed chassis yet high speed ball bearing shaft allow encoder to installed without worry of the mis-reading due to dust or moisture during cutting operation. It s very important that reliable reading for building CNC system. A wrong reading cause by unprotect encoder will cost expensive servo system damage or ruin the material or inconsistence product.
Small size, light weight for easy installation.
Outer body diameter 25mm, rabbet 12mm, shaft 4mm with notch
Encoder has 1 meter ( 40 ) shield cable and do not connect to any connector.
5 connection/ ground shield wire
Standard A,B, and Z channel output
Wideo voltage range +5V to +24V
Mounting hole is 2 x M3 screw hole, 18mm apart
Fully enclosed IP54 class protection.
High speed encoder take maximum slew Speed of 6000 rpm.
LOW cost, high quality, trouble free usage down the road.
MTBF => 10000hr ( 25C, 2500rpm)
