> Helicoid 4-1/2 60 psi pressure switch F1C1E1A3C0000

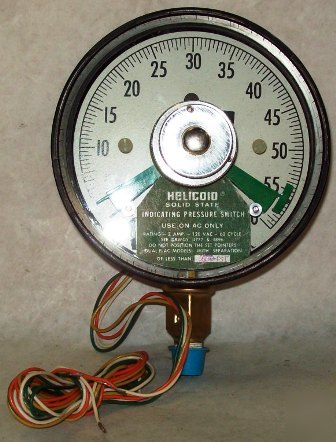

Helicoid 4-1/2 60 psi pressure switch F1C1E1A3C0000
Listing Reference Number: #7895
Solid State Indicating Pressure Switch
Set points externally adjustable between 5% and 95% of gauge range
Minimum differential between set points is 5% of gauge range
Minimum pull-in/dropout of each set point is 2% of gauge range
Gauge Accuracy: +/- 1/2% (0.25%) Per A.N.S.I. B.40.1 Grade 2A
Switch Type: Normally Open SPST Reed Switch
Switch Rating: 120 Volts 60 Hz, 2 Amps
with 4 feet of no 20 AWC hookup wire
Options: I.D.C., Low Switch for Decrease, High Switch for Increase
This solid state indicating pressure switch is a combination of Helicoid pressure gauge and a lens mounted solid state switching elements. A magnet mounted to the gauge pointer activates a hermetically-sealed reed switch at each set point. Upper and/or lower set points normally have capture tabs to prevent the gauge pointer from moving beyond the set points, thus providing a mechanical power-off memory. There is a continuous indication of the process variable between set points. In AC applications the reed switch energizes a triac (solid state switch), while for DC applications he control current is is carried directly by the reed switch. Typical applications include on-off controls of motors, pumps, solenoids, relays, annunciators and alarms.
