Lincoln electric big red 500 - engine drive - K2810-1

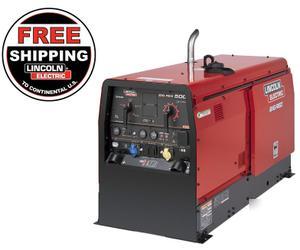

Lincoln Electric Big Red 500 - Engine Driven Welder - K2810-1
Built for operation in remote locations, the Big Red 500 is a simple, rugged diesel engine driven welder for stick welding, TIG and arc gouging. The design features no PC boards, proven reactor technology and the popular Deutz D2011L3i oil/air-cooled industrial diesel engine for high reliability in jungles, deserts and other extreme environments.
- Heavy guage steel base, frame, case sides and roof.
High-Output Welding and Arc Gouging
- 500 Amps DC stick and DC TIG welding.
- 8 mm (5/16 ) carbon arc gouging.
- Rated welding outputs for extreme temperature operation up to 55 C.
Versatile Receptacle Connections for 60 Hz AC Generator Power
- Operate common construction tools:
* 2,400 watts, 120V NEMA receptacles.
* 1,800 watts, 120V EURO receptacle.
* 120V receptacles are GFCI protected.
* 3,600 watts, 240V EURO receptacle, with a port for easily adding an RCD (Residual Current Device).
Popular Deutz Industrial Diesel Engine
- Deutz D2011L3i, 32 HP, 1800 RPM.
- Engine protection for low oil pressure and high temperature.
- Low maintenance and long life.
Dimensions (in) H x W x D : 36.9 x 28.3 x 65.1
Dimensions (mm) H x W x D : 937 x 718 x 1654
Rated CC DC Output Amps/Volts/Duty Cycle:
* Desert Duty Rated: 350/34/30%/55 C
* Desert Duty Rated: 400/36/30%/50 C
* Desert Duty Rated: 450/34/30%/45 C
Type of Engine: Deutz D2011L3i EPA Tier 4i
