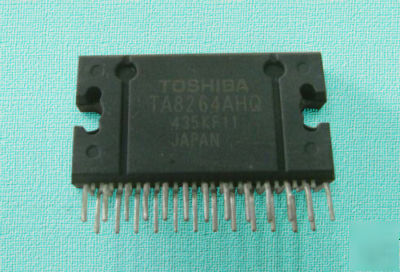

Max power 41W 4 ch audio power ic TA8264AHQ TA8264AH
Max Power 41W BTL 4 ch Audio Power IC TA8264AHQ TA8264AH
- The TA8264AHQ is 4 ch BTL audio power amplifier for car audio application.
- It is designed low distortion ratio for 4 ch BTL audio power amplifier, built-in stand-by function, muting function, and diagnosis circuit which can detect output to VCC/GND short and over voltage input mode.
- Additionally, the AUX amplifier and various kind of protector for car audio use are built-in.
- High power : POUTMAX (1) = 41 W (typ.) (VCC = 14.4 V, f = 1 kHz, JEITA max, RL = 4 OHM)
- Built-in diagnosis circuit (pin 25)
- Low distortion ratio: THD = 0.02% (typ.)(VCC = 13.2 V, f = 1 kHz, POUT = 5 W, RL = 4 ?)
- Built-in various protection circuit: Thermal shut down, over voltage, out to GND, out to VCC, out to out short, speaker burned
