New pic development board & usb programmer w/ 2 lcd's
PIC Development Board & USB Programmer w/ 2 LCD's New
Whether you're a student or an engineer, experiment with and explore the capabilities and functions of Microchip PIC microcontrollers with this brand new EASYPIC-1 development kit with DS18B20 digital thermometer.
With the system you can interface PIC microcontrollers with external circuits and a wide range of peripherals, which in turn lets you make the most of your time and concentrate on that all important software development.
* ID marks besides each component enable quick and easy identification, microcontroller connections, operation modes and other useful data
* Supports 8 - 40 pin microcontrollers in DIP package
* Power supply selectable: choose from USB or an external non-regulated supply
* External power supply may be AC or DC with a voltage between 7.5V and 12V
* Has 8 LED's that are connected to the microcontroller's ports RD
* Has 9 push buttons that can change states of digital inputs to the microcontroller's ports
* The included graphic LCD displays advanced visual messages such as drawings and bitmaps
* Character LCD is also included
* The microcontroller has 4 7-segment displays in multiplex mode
* Achieve point-to-point data transfer with the RS-232 connection
* Microcontroller is connected to the MAX232 via JUMPER J5 for greater flexibility
* DS18B20 digital thermometer has wide temperature range of -55 C to 125 C
* DS1302 clock combines small size, low power consumption and real time time-keeping
* Built in potentiometer for working with ADC
* PS/2 connector enables a connection between the microcontroller and a PC, keyboard or mouse
* Handy slimline infrared remote control included

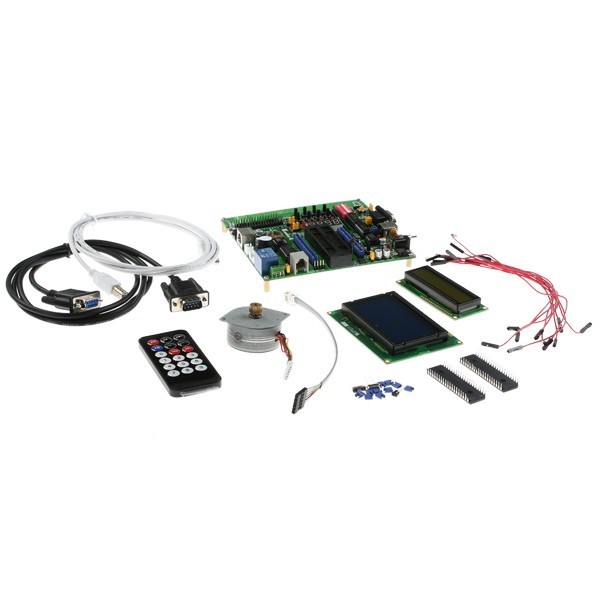

This is a brand new kit which includes:
* Microchip development board
* DS18B20 temperature sensor
* Dupont thread expansion connectors (X10)
* Driver disc with user manual and data sheets
* Power supply: 7.5 - 12V DC or AC
* Temperature range: -55 C to 125 C
* Temperature accuracy: 0.5 C
