Fujikura fsm-30S fiber fusion splicer FSM30S w/ cleaver

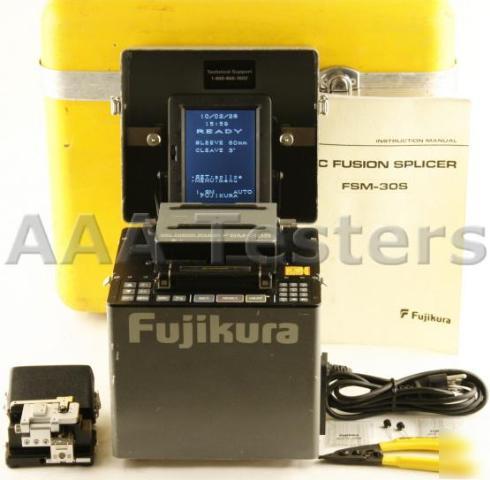

* Fujikura FSM-30S Fusion Splicer
* Fujikura CT-04 High Precision Fiber Cleaver
* (20) Fujikura FP-03 Fiber Protection Sleeves
* Clauss CFS-02 Fiber Optic Stripper
Fujikura AFL FSM-30S SM & MM Automatic Core Alignment Fusion Splicer
Splice Single Fiber: SM @ 1310 nm, DS @ 1550 nm, CS @ 1550 nm, MM & Erbium Doped fiber
Includes A Fujikura CT-04 High Precision Fiber Cleaver!
The Fujikura FSM-30S fusion splicer is the new generation automatic core alignment splicer.
The FSM-30S utilizes the direct core monitoring Profile Alignment System (PAS) to achieve ultra low loss and very accurate splice loss estimation regardless of fiber quality or age. While smaller and lighter than previous models, the FSM-30S has increased capabilities and more operating modes.
The FSM-30S optical system and microprocessor automatically align the fibers and inspect cleave quality. By using the Eccentricity Correction Function (ECF), the splicer determines the fiber core/cladding eccentricity and automatically compensates for in order to assure precise core alignment of the completed splice. The field-proven performance and reliability of Fujikura core alignment PAS splicers are improved with the new FSM-30S.
* Fully automatic operation once fibers are set in the fixture
* Observation of both X and Y axis simultaneously
* Atmosphere, humidity and temperature compensation functions provided
* Mechanical proof test provided
* Automatically stores the last 100 splice losses together with dates. Optional built-in memory card slot for storing additional splices.
* Mode field diameter mismatch compensation splicing programs. Suitable for splicing two different fibers (such as DS fiber to Er-doped fiber).
* Splice loss control function for creating an in-line fixed attenuator
* Arc power is optimized automatically by an integrated arc power test
* Programmable tube heating cycle
Single Fiber: SM @ 1310 nm, DS @ 1550 nm, CS @ 1550 nm, MM, Erbium Doped fiber
Typical 0.02dB with SM fiber, 0.01dB with MM, and 0.05dB with dispersion shifted
CCD Camera with high resolution 4" LCD monitor with excellent viewability in direct sunlight
100-splice data sets with internal memory. (Increased to 1600 data sets with optional 64 KB PCMCIA memory card and 24,000 splice data sets with 1MB memory card
85 to265 VAC (50/60 Hz) and 10 to 15 VDC
21cm x 18.7cm x 17cm (8.3" x 7.4" x 6.7")
