New mdc load-lock door for vacuum chamber pump 10" cf

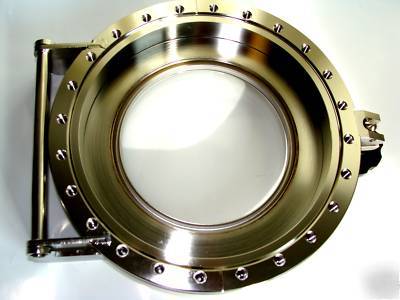

MDC LOAD-LOCK DOOR WITH VIEWPORT
This viewport door attaches to any 10" conflat CF flange. It allows for quick insertion and removal of samples from the vacuum system.

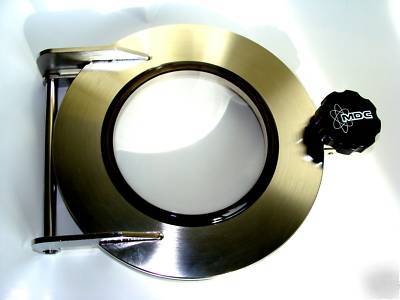

Quick-Access doors provide convenient and fast manual loading of samples in and out of vacuum chambers. Doors are hinged and fitted with a swingaway hand knob locking mechanism. Viewport fitted doors are constructed with Corning type 7056 glass fused to a Kovar nickel-iron transition sleeve. All access doors are supplied with Viton elastomer seals suitable for high vacuum service. High temperature Kalrez elastomers can be used to increase a door s maximum temperature rating.
Quick-Access doors with clearance mounting holes are intended for installation on chamber ports with tapped holes. To order this hardware, reference the hardware table below. Note that the mounting hardware listed below is not long enough to join a clearance hole door with a clearance hole flange.
Quick-Access doors with tapped mounting holes are intended for installation on chamber ports with clearance holes. The hardware required to mount tapped hole doors is the same as for joining a standard clearance hole and tapped hole Del-Seal CF flange combination. To order this hardware reference Del-Seal CF flanges hardware section. Note that the mounting hardware listed below is not long enough for installation of a Quick-Access door with tapped mounting holes.

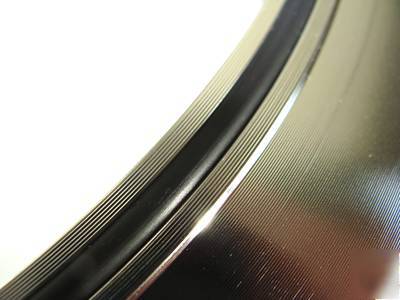

* Viton elastomer door seal
* Tapped or clearance hole mounting port flange
* Detailed specifications at http:// /urd/uniface.urd/ecf0070w.display?7.2.2.7
CHECK OUR LISTINGS FOR MORE UHV VACUUM AND IR LASER COMPONENTS
