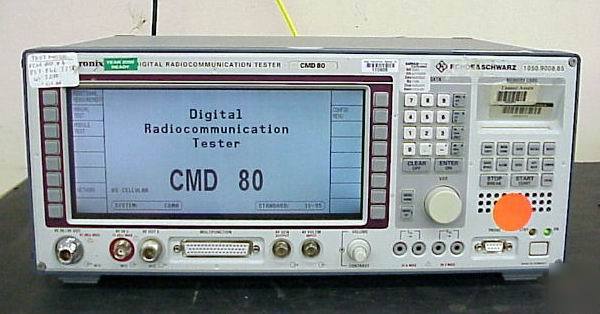

Tektronix CMD80 B1/B3/B4/B60/B62/B81/K1/K2 comm t/s
Tektronix CMD80 B1/B3/B4/B60/B62/B81/K1/K2 Comm T/S
The CMD80 Communication Test Set provides the ideal one-box solution for testing digital mobile radio equipment - CDMA, GSM, DCS 1800, DCS 1900. The unit is a compact tester for CDMA mobiles which provides full signaling capabilities. The mobile RF parameters are verified under similiar conditions as found in a real network (the tester simulates a base station, makes a call to the mobile, and performs the measurements without any special test modes in the device-under-test.) Features: Fast measurement speed. High measurement accuracy and repeatability. High reliability and quality. High flexibility. Triple mode (CDMA, TDMA, Analog) dual band (cellular, PCS) in one box. Easy to use. Remote control via IEEE488/IEC625 bus. Autotest - complete mobile testing at a keystroke. Remote control via GPIB or RS232. Suitable for production, development and service. Very fast remote control operation. Excellent price/ performance ratio. Voice lookback and comprehensive testing of mobiles. Powerful signaling capabilties.Simple interactive operation. Compact and lightweight. No specialized network knowledge required.
Option B1 = OCXO Reference Oscillator.
Option B3 = Reference Frequency Inputs/Outputs.
Option B14 = Rate Set 2 (13k vocoder support).
Option B60 = Carrier Board for B61/B62. Option B61 = IEEE/IEC-Bus Interface.
Option B62 = Memory Card Interface.
Option K1 = IS-95 CDMA 800 MHz Test Capabilities.
Option K2 = PCS1900/1700 MHz Test Capabilities
