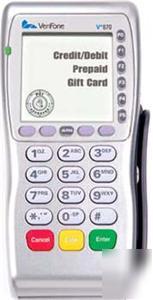

VX670 wireless gprs credit card terminal vx 670
VERIFONE VX 670 GPRS-PCI COMPLIANT - NEW
* Large, white backlit display and large blue backlit keys
* Wi-Fi and GPRS wireless technology options
* Integrated, hidden printer with dual tear bar that s extremely quit and easy to load
* Vertical mag-stripe reader, and optional smart card support
MAXui interface design provides a large high-contrast, white backlit display and ample keypad area with blue backlighting and improved tactile response
Rounded corners and impact resistance to three feet on hard floor minimize breakage
Vertical mag-stripe card reader with contoured blade increases read rate
Optional holster easily fits onto employee s belt to keep hands free
Proven Vx Solutions and industry-leading ServPOS or SoftPay software provide a flexible, familiar environment and minimize training
Impressive Performance Meets Incredible Functionality
High-capacity 7.2 volt 1800 mAh lithium-ion battery can be quickly swapped with one hand
Optional full-feature base with spare battery charging also contains back-up dial connection and two USB ports for use with VeriFone USB peripherals
PCI approval ensures compliance with the most stringent security standards
Industry benchmark WPA Wi-Fi security
Other security protections include tamper-resistant construction, end-to-end SSL protocols, and VeriShield file authentication
QUESTIONS?? PHONE (***)-441-6670
6 Mbytes (4 Mbyte of Flash, 2 Mbyte of SRAM).
128 x 128 pixel graphical LCD with contrast white backlighting; supports 16 lines x 21 characters.
Triple track (tracks 1, 2, 3), high coercivity, bi-directional.
ISO 7816, 1.8V, 3V, 5V or synchronous and asynchronous cards; EMV certified.
3 Security Access Modules (SAMs).
3 x 4 numeric keypad, plus 10 soft-function keys and 6 screen-addressable keys.
Single multi-port connector, which supports RS-232, USB Host, USB Slave and Integrated Charging.
Integrated thermal with graphics capabilities, 18 lines per second, 24 or 32 columns; standard counter-top paper roll 38 mm (2.25 in.) x 25M, single ply.
Optional USB Modem Dongle for use with multi-port connector, or use with fully featured base. Standard 33.6kbps dial modem.
Supports Wide Area Wireless GSM\GPRS on 900/1800 MHz or 850/1900 MHz; and Local Area Wireless WiFi 802.11b.
3DES encryption, Master/Session and DUKPT key management; PCI PED approved.
0 to 40 C (32 to 104 F) operating temperature; 5% to 90% relative humidity, non-condensing.
AC input 100 - 240 VAC, 50/60 Hz; DC Output 12 VDC, 2.0 AMP.
1- VX 670 GPRS wireless terminal
