Tektronix 1230 32 channel logic analyzer
Flexible mainframe can be configured as a general purpose basic 16 channel timing and state analyzer expandable up to 64 channels. Features: 100MHz asynchronous sampling; 100MS/s digitizing oscilloscope card; 25MHz synchronous sampling; 2K memory depth/channel; disassembly for 8 and 16 bit microprocessors; 14-level triggering with conditional branching; and Parallel Interface option.

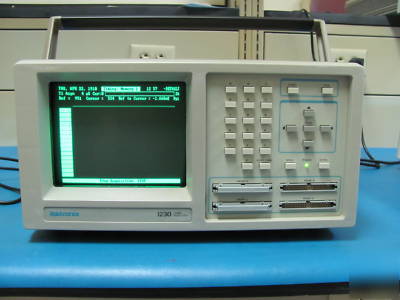

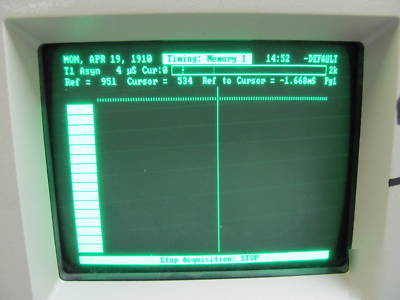

The Tektronix 1230 Logic Analyzer powers up and runs stably. It navigates through the menus, and all dials and buttons function properly. The screen is in excellent condition, and the entire unit is beautiful cosmetically except for the black markings on the front.
