Aegis aquatrac controller abp-B2-TB3

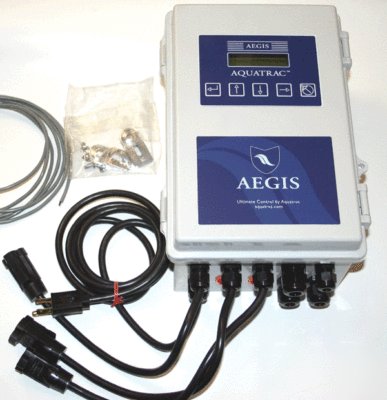

Aegis Aquatrac Controller ABP-B2-TB3.
Controller Powers up and looks to be new, never installed.
AQUATRAC s AEGIS controller provides the latest in technology
and is the perfect economical solution for process, cooling, boiler
and waste water treatment applications.
Conductivity Sensor: Tower, Boiler, Condensate & Integral Flowswitch sensors
Default tower sensor includes 1GPM integral flowswitch
Fixed Temperature Sensor Input Thermal compensation for both pH and Conductivity
Fixed 4-20mA Current Loop input Assignable to control any relay or variable frequency control
Single point calibration if 4mA=0
4 Optional analog inputs/outputs Choose from the following; conductivity with temperature, pH/ORP, 4-20mA input, 4-20mA output, corrosion rate and boiler conductivity.
Each optional current output uses a dual sensor card slot
7 max. Manual-Inventory-ppm Inputs Track drop counts, inventory, tank level, ppm
Alarmed Delay prevents premature system alarms
Communications User Interface:
10Base T, TCP/IP Ethernet LAN (optional) HTML, Micro Web Server with user definable IP address
Browser shows controller in real time
Sequential Volume Setpoints Feed a fixed volume for every make-up volume
Meter only, fault tolerant feed controls
Blocking Any of 8 controls may block any other control
Prevents incompatible concurrent controls
Interlocking Up to 4 contact sets can be AND ed or OR ed
Relays & Frequency controls OFF when contact set opens
9 Biocide Event Controls Each of 9 controls includes 28 timed events
Each control selectable for 1,7 & 28 day cycles.
Fusing for 5 AC powered loads 5 Amps @ 120VAC or 2.5Amps @ 230VAC
Surge Suppression Relay 2-5 N.O. contacts snubbed @ 0.1uF, 150 ohm
Accessory Power 15-22VDC, Unregulated, Thermally Fused @ 50mA
Auto-recovery on fault cleared.
Enclosure Non-metallic, NEMA4X
7.5 W x 11.3 H x 5.5 D (190mm W x 287mm H x 140mm D)
If you have a problem with an item we will work with you .
All Items are sold with what is shown in pictures Only.
