Alinco dualband dr-620 crossband repeater 50/35 watt
For further information on CrossBander Repeater for emergency use, Please open this website :
http://www.qsl.net/wb3gck/cbr.htm

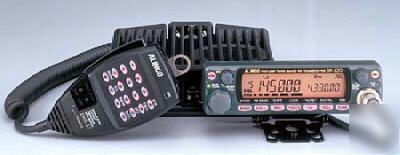

The Alinco DR-620 is a new twin band mobile transceiver operating on the 2 meter and 70 cm bands. It has transmit coverage from 144 to 147.995 and 430-449.995 MHz. Receive coverage is 108 to 173.995 and 335 to 480 MHz. This includes the VHF air band in AM mode and the FM broadcast band 87.5 to 108 MHz in Wide FM mode. 200 alphanumeric memories are available. Power output on VHF is 50/20/5 watts and UHF is 35/20/5 watts. Dual band receiver with V/V, U/U, V/U and U/V capability. Yes, cross-band repeat is supported! The large, easy-to-read LCD shows status icons and alphanumeric tags. CTCSS & DCS encode/decode. Other features include: auto power off, time out timer, tone burst, scan, channel lock-out, dimmer, VFO auto program, theft alarm function, narrow FM, power supply voltage display and remotable head. A fan on the rear panel insures cool operation during transmit. The front panel is remotable via the optional EDS-9 separation kit. The advanced 10F3 digital mode with speech compression technology is available via the optional EJ-47U board.
* VHF/UHF operation includes V/U, V/V and U/U modes
(Not capable of full-duplex V/U,V/V,U/U operation. The sub-band mutes while transmitting on the Main band)
* H/M/L power output settings- VHF: 50/10/5w UHF: 35/10/5w
* Large alphanumeric display
* Selectable display color illumination
* Internal duplexer - single PL-type antenna connector
* Removable control head can be remote mounted or allow transceiver to be inverted
* AM Aircraft band reception and MARS modifiable (T models only)
* Direct GPS input for APRS mobile tracking (requires optional EJ-50U)
* Digital voice communications with optional EJ-47U (where permitted)
* Optional illuminated DTMF EMS-57 microphone (included with DR-620T) allows direct VFO frequency entry and remote control of transceiver
* Programmable VFO and Memory scan including Timed, Busy and Skip mode.
* "Time Out" timer and Busy-Channel-Lock-Out
EJ-47U digital modulation board for amateur use *
EJ-50U Internal TNC unit / advanced version
EDS-9 Front-control unit separation kit 5m
EMS-57 Remote-control multi-function microphone (for European version)
* NOT compatible to EJ-40/43U 20F3 digital mode. Please be sure to consult the rules that apply in your country before you actually operate in the digital mode. This unit is neither available nor intended for use where the import, sale or use of such devices is prohibited by the government. Alinco declines any and all responsibilities for any illegal use, nor is it responsible for sales of our products by dealers to any party.
16K0F3E(FM)/8K50F3E(Narrow FM)/10F3(digital voice)/F1(9600bps)/F2(1200bps)/A3E(RX only/AM)
Approx. 11A TX high / 600mA RX max. / 400mA RX squelched
High VHF 50W / UHF 35W, Mid 10W, Low 5W(approx.)
NFM: -6dB: 6KHz or more, -60dB: 14KHz or less
* Microphone (EMS57/EMS53 depending on the version) * DC cable * Bracket * Hardware pack * ACC port cable * Sticker * Instruction Manual
