New lincoln K1297 225A acdc stick welder ( )

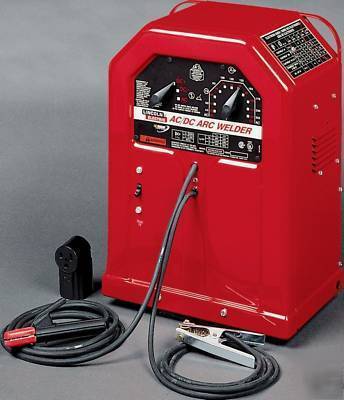

Lincoln K1297 225A ACDC Stick Welder
http://weldingsupplyusa.com/images/Lincoln_K1297_225A_ACDC_Stick_Welder_400x465.jpg
http://norrisequip.com/images/LincolnElectric_logo.gifLincoln K1297 225A ACDC Stick Welder
The AC/DC 225/125 is the deluxe version of the world renowned AC-225 arc welder. It uses the same traditional design of the AC-225, but adds the smoother, more stable DC welding arc. Ideal for farm, shop, and home use where improved arc welding performance is desired.
The AC/DC 225/125 is an arc welding power source with an AC welding output range of 40-225 amps and a DC welding output range of 30-125 amps. It is an extremely useful stick welding power source for maintenance repair, fabrication, construction, erecting and hardfacing applications. Also for cutting and piercing holes in steel.
Easy to install. Comes with attached input power cable and plug.
Easy to operate with front mounted AC/DC polarity switch and full range amperage selector switch for accurate and dependable procedure setting.
Traditional design provides long-life and low cost operation.
AC or DC welding output for complete stick welding versatility.
Smooth arc makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.
Use the electrode polarity switch on the front of the machine to select a DC welding arc where a stable arc is essential.
Select an AC welding arc for large diameter general purposes electrodes for welding heavier plate where higher deposition rates and travel speeds are desired.
Electrode selection chart on the machine case provides quick and easy reference guide for amperage selection.
225 amp AC output is enough for 3/16" diameter general purpose mild steel electrodes and 5/32" sizes of other electrodes.
125 amp DC output is enough for most 1/8" electrodes.
Fan-cooled for extra thermal protection.
Vermin resistant mesh bottom keeps rodents and pests out of the case.
Powder paint finish for high corrosion resistance.
UL listed and CSA approved (60 Hz only).
3 year warranty on parts and labor.
http://norrisequip.com/images/LincolnElectric_logo.gif
Input cable with attached plug.
