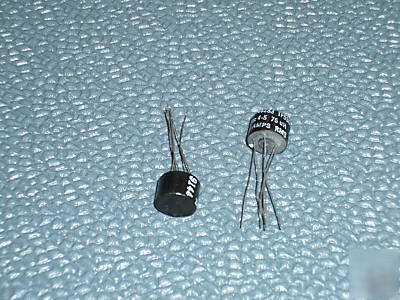

Reactor- TF5S0422 - 10PCS
TERMINAL TYPE AND QUANTITY - 2 TAB, SOLDER LUG
RATING METHOD - ELECTRICAL SINGLE COMPONENT SINGLE WINDING
WINDING OPERATING CURRENT - 0.5 AMPERES DC MAXIMUM SINGLE COMPONENT SINGLE WINDING
DC RESISTANCE RATING IN OHMS - 1.500 SINGLE COMPONENT SINGLE WINDING
INDUCTANCE RATING - 80.00 MILLIHENRIES NOMINAL SINGLE COMPONENT SINGLE WINDING
FREQUENCY RATING - 60.0 HERTZ NOMINAL SINGLE COMPONENT
WINDING QUANTITY - 1 SINGLE COMPONENT
MOUNTING METHOD - BRACKET AND SLOT SINGLE GROUP
MOUNTING FACILITY QUANTITY - 4 SINGLE GROUP
MOUNTING SLOT WIDTH - 0.195 INCHES MINIMUM AND 0.205 INCHES MAXIMUM SINGLE GROUP
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH - 2.495 INCHES MINIMUM AND 2.505 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH - 2.245 INCHES MINIMUM AND 2.255 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
INCLOSURE TYPE - FULLY INCLOSED
BODY LENGTH - 3.060 INCHES MAXIMUM
BODY HEIGHT - 2.540 INCHES MINIMUM AND 2.580 INCHES MAXIMUM
BODY WIDTH - 2.880 INCHES MAXIMUM
RELIABILITY INDICATOR - NOT ESTABLISHED
(NON-CORE DATA) CUBIC MEASURE - 22.7 CUBIC INCHES
