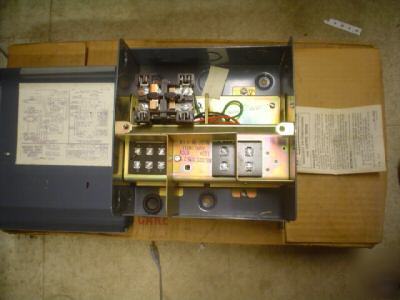

Honeywell rac fan center R8102C 120 v 24 v transformer
* The R8102C Fan Center Panel is designed for use with 24-Volt heating-cooling thermostat and subase combinations, such as the T87A-Q405, T870-Q412, or T889-Q482. It provides low-voltage control for an evaporator fan and an R8101 Panel.
* The R802C includes an spdt fan relay, with both quick-connect and screw type terminals for line-voltage leads; a lot-voltage terminal strip for connection to a room thermostat and for supplying low-voltage power to the R8101 Panel; and case cover.
* The R8102C Fan Control Center will replace most spst or spdt fan relays or fan control centers where the controlled load does not exceed the R8102 electrical rating.
