New dental air propjet polisher teeth prophy ps-01

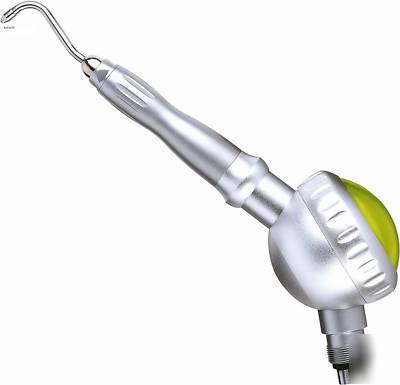

New Dental Air Propjet Polisher Teeth Prophy Polishing 4 holes
6389c9ee.jpg picture by kola618
Mini-Polisher is a kind of dental descaler equipment which is used synthetically with complex treatment method in dental surgery. It is connected to the joint of high speed manual machine of complex treatment unit, the air souse(0.2Mpa-0.4MPa)and water source(0.05MPa-0.5MPa)on complex treatment unit will control air pressure and water pressure of Mini-Polisher. The operating principle of Mini-Polisher is as follows: the sand blasting powder in case would spurt out from nozzle via pipeline by compressing the air into case At the time of powder spurting out, it mixes with water spurting out from mouth of Mini-Polisher to form into a foggy mixture. And this mixture would spray on the surface of teeth.
1.The appearance is handsome and dexterous and the structure is indiscrete.
2.Directly connecting to complex treatment unit, so it is very handy.
3.It is easy to replace the working head of Mini-Polisher. And it can be sterilized in temperature of 135 .
4 Anti-resorption facility in Mini-polisher can prevent blasting powder to be back-adsorbed into complex treatment unit.
1.Mini-Polisher can be divided into two types according to connection mode: A connector (two holes) and B connector (four holes).
2.Water pressure:0.05Mpa-0.5MPa
4.Water spraying amount of working head:30ml/min
5.Sand blasting amount of working head:2g-3g/min
1.All components can be cleaned by soft colth with neatral detergent;all components can be sterilized at 135 except the translucent cover that can be sterilized at 121 .
2.After finishing treatment, empty the case,tighten the cover, blow the remaining powder in the passage ofjet flow with compressed air to avoid the remaining powder dampening resulting in blocking.
The life the the machine is 3 years.
1.The nozzle can be sterilized at 135 .
2.The handpiece can be sterilized at 135 .
3.The translucent cover can be sterilized at 121 .
4.the case can be sterilized at 135 .
The packaged product should be stored in draughty and dry place
