Pair oscilloscope probes complete. type P6100

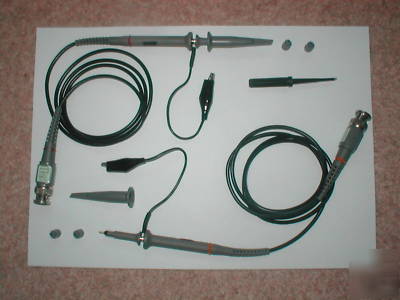

Pair P6100 Oscilloscope Probes
These are new un-used quality "Scope Probes" that are accurate up to 100Mhz operation. They are the X1/X10 type so present a High impedance/Low capacitance load to whatever it is you are measuring.
They come with a calibration trimmer- tool, 4xTip Locating Sleeves and plastic Carry Pouch
* Useable with scopes having Bandwidth up to 100 MHz
* Interchangeable Probe Tip
* Compensation range: 15 to 35 pF
* Input Capacitance: 1X: 85pF-115pF; 10X: 14.5pF-17.5pF
* Input Resistance: 1X: 1Mohm; 10X: 10Mohm;
* Bandwidth: 1X: DC-4MHZ, 10X: 100MHz
* Operating Temp: -10C-50C
* Operating Humidity: <=85%
* Maximum Input Voltage: 1X: 150 VDC, 2X: 300 VDC
