Software house apc/8X AS0100-004MB nps used panels

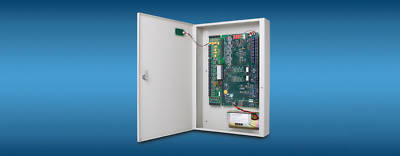

The apC /8X Advanced Processing Controller is an
intelligent access control and alarm monitoring panel
which serves as a basic building block for all C CURE
The CMOS Motorola 68306 16-bit processor gives the
apC/8X maximum flexibility in card population and in
utilizing its numerous firmware features. The apC/8X is
available with up to 4 MB static RAM and 4 MB EPROM
and flash ROM. The panel s CMOS static RAM consumes
minimal power for data storage, allowing longer onboard
preservation. The flash ROM makes firmware
The apC/8X supports optional add-on modules that
make the apC/8X a powerful and flexible platform for
a wide variety of access control, alarm monitoring,
and integrated security applications. Multiple card
technologies and card formats can be used on the
same apC/8X, making it ideal for single and multiple
tenant applications and for retrofitting existing systems.
Its bus architecture reduces wiring requirements and
The apC/8X is designed to provide advanced functionality
in the off-line mode, including elevator control, local
anti-passback and alarm or event-initiated output
activation. The apC/8X is also capable of redundant
communications for high security applications.
Manufactured by Software House for meeting complete
Fast, stand-alone processing with flash ROM support
Distributed database processing for up to 160,000 cardholders
255 time commands for automatic input, output, and reader
Support for magnetic stripe, Wiegand, and proximity card
Card, keypad, or card and keypad access support
Reader-by-reader support for variable card formats,
site codes, company codes, and card technologies
Class A, 2-wire supervised input capability
Internal activation and expiration dates for cardholders
Real time full-year clock and calendar
Dynamic memory allocation between card and events storage
Software-linked inputs and outputs for offline control
Communication between host and apC/8X through direct
Up to 80 hours onboard memory retention in case of power failure
Star, bus, or combination star and bus reader configuration
Battery backup available for uninterrupted on-line operation
X.25, Ethernet, Token Ring support for specific configurations
