AARK24 10/10 24BIT professional asiorecording interface
Aardvark Aak24 10/10 (in/out) Audio Interface w/ADAT & S/PDIF
Professional quality 10x10 PC (PCI) Interface that can be found everywhere from home project studios to the most modern advanced studios making amazing digital recordings worldwide.
Mfr Part#: Aark24 Platform: PC Manufacturer: Aardvark
Includes CuBase LE Software version 1.07 (works w/MAC or Windows 2000/XP) I used the Aark with Sonar Producer
Hard Disk 24 Bit Multitrack Recording for the PC!
Achieving superior sound requires simple, foolproof gear. That's why studio pros worldwide trust Aardvark digital audio products to always deliver natural, dynamic sound.
Built upon a decade of experience in engineering high-end digital audio gear, the Aark24's premium 24 bit outboard A/D converters and innovative design give your sound supreme clarity and precise accuracy. You'll notice the difference in any recording session where sonic excellence is an absolute must.
In addition to phenomenal sound quality, the Aark24 is versatile enough to interface your PC with any gear in your studio. The standard ADAT I/O and ADAT Sync makes the Aark24 is the perfect complement to any ADAT based studio while the Word Clock I/O allows it to sync your entire studio to Aardvark's legendary clocking technology! Sequence your synth gear using MIDI I/O while flying digital audio directly to your DAT via the coaxial S/PDIF I/O. And with TOSLINK stereo optical support you can make a direct digital transfer from any Sony Minidisc ; or CD player.
No other audio system can turn your PC into a professional workstation as easily as the Aark24. Simply put, the Aark24 brings multichannel audio to your PC with superior resolution and amazing sound quality.
Converters: 24 bit A/D D/A Shielded Outboard Converters
Frequency Response: 7Hz-22KHz, +/- .5 dB
THD+N: .002%, 20Hz-22KHz, A-weighted
Dynamic Range: 100 dB A/D; 110 dB D/A A-weighted
Analog Inputs: Eight 1/4" TRS Connectors: +4dBu/-10dBv Switchable Bal/UnBal
Analog Outputs: Eight 1/4" Connectors: +4dBu/-10dBv Switchable Bal/UnBal
Digital I/O: ADAT In/Out 8 channel 'Lightpipe' Format, S/PDIF RCA, TOSLINK Optical, OPTIONAL: TASCAM TDIF 8 channel I/O, OPTIONAL: AES/EBU In/Out
MIDI I/O : MIDI In/Out 5-Pin DIN
Sync I/O: Word Clock In/Out BNC, ADAT Sync 9-Pin for Machine Control, S/PDIF In/Out, TOSLINK In/Out Optical
Modes: Full Duplex Simultaneous Record/Play
Expansion: Up to any Four (4) Aark Cards can be used simultaneously in one PC
Card Type: PCI architecture, 5" length
Interface Cable: 6' length, custom 25 pin shielded cable
Sync Selection: Internal 44.1, 48, 32, Ext. WC (30-50KHz), S/PDIF, TOSLINK, ADAT
Sample Rate Meter: Displays Sample Rate of System Clock
Calibration Signals: All Outputs can Generate Silence or -12dB Tone for Calibration
Input Meters: Eight Digital Input Meters with Peak Hold and Reset
Assignable Meter: One Stereo Meter Assignable to any Input, Playback or Monitor Sub-mix
Monitor Mixer: Sub-Mixes Input and Playback Tracks w/ Level & Pan Controls
Digital Router: Route any Input Signal, Playback channel from software, Monitor mix, Calibration Tone or Silence to any breakout box output
Device Drivers: Full Duplex Device Drivers for Windows 95/98 & ASIO
Application Status: Shows if Card & Application are Recording, Playing, Paused or Available
PCI Efficiency: Percentage Display Shows Efficiency of Computer's PCI Bus
Windows 95/98/2000/ME/XP - not sure if it works w/Vista or 7, sorry
Windows ASIO Driver and Software Control Panel on CD - I have two other drivers I can email you with as I found there are certain types of drivers for this that work better for different systems
Digital Audio PC Interface from Aardvark
Achieving superior sound requires simple foolproof gear. That's why studio pros world-wide trust Aardvark digital audio products to always deliver natural, dynamic sound. The pros know Aardvark's professional components and high-quality construction ensure incredible resolution and powerful realism in their music.
Now the Aark 24 brings the same quality and clarity to PC recording. Its shielded outboard converters and premium Op Amps ensure ultra smooth transition from analog right to your hard disk, so the tracks you're editing have the same power and fidelity as the original creative sound.
* TOSLINK & ADAT Digital I/O
* PCI Architecture Host Card
6' custom 25 pin shielded cable
A/D D/A Shielded Outboard Converters

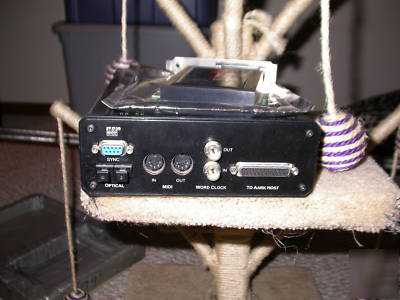

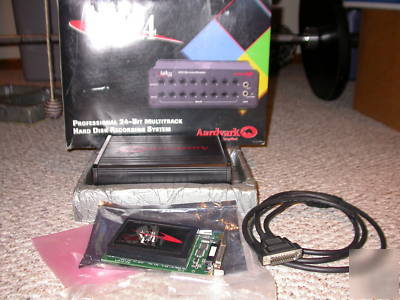

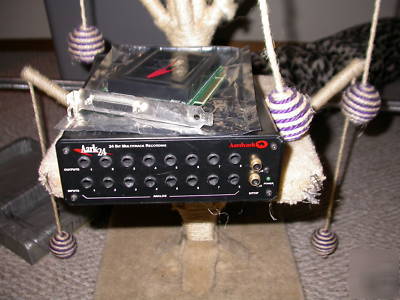

Aark 24 (Outboard Converter Interface)
Aark 24 Host Card (PCI Card w/ DSP)
Multichannel Recording Application & Effects
Our Price: $599.00 - I threw that in there as that is how much it is new - I'm selling for $149.95 only!
Aardvark Aark24 Professional Studio System with Cubase LE - Windows or MAC
