Agilent agl 44470A relay multiplexer

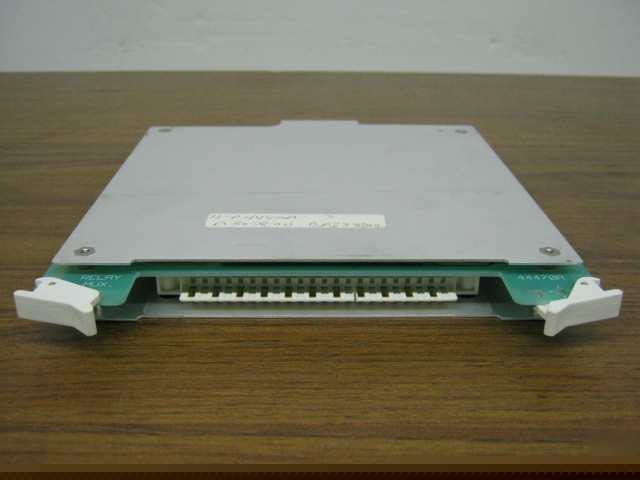

Agilent AGL 44470A Relay Multiplexer
The HP 44470A Multiplexer Module, Option 10 of the 3488A Signal Routing and Measurement Switch/Control Unit.
* 10-channel multiplexer for scanning or multiple signal connections
* Channels switch 2 wires (Hi and Lo) with 2PST relays for DVM inputs and other signals up to 250V and 2A
* Can also be used to multiplex signals to other switching functions, such as the matrix module
