Arduino compatible freeduino pcb
100% compatible with Arduino Diecimila board.

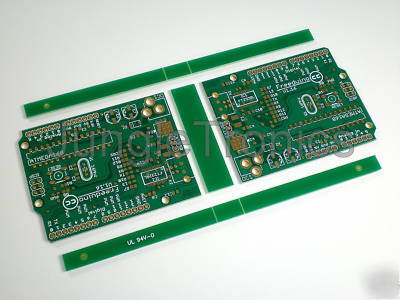

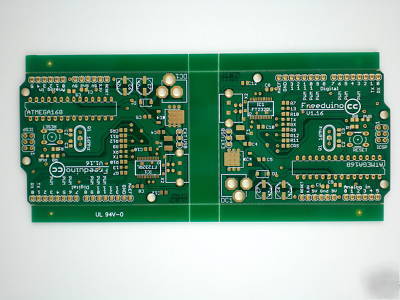

Freedunio V1.16 (0805)pcb by WestFW x2 on panel with tooling strips and fiducial marks ready to feed into a pick and place machine.

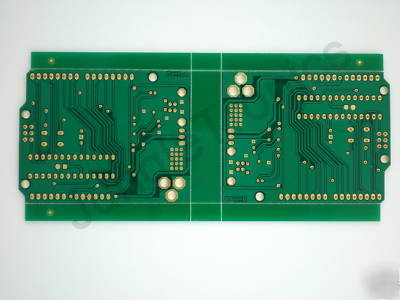

This panel makes two Freedunio's
This layout is for using with 0805 smd parts.
If assembling by hand these tooling strips will aid in holding the Pcb's.
Full info at freeduino.org -eagle cad files and schematic with component values.
You may use Atmega8/168/328 on this pcb.
High quality pcb made using industry standard FR4 (fibreglass) 1.6mm thick with nickel/gold finish.
Has undergone 'Bare Board Test' means there are no track to track or track to ground shorts etc.
You may populate the board fully OR just add parts required for your application.
No psu parts required if you already have a power source.
You may add a 3.3volt regulator instead of 5v one to get a 3.3volt board.
When you need a shield compatible pcb and want to use the minimum parts then this is what you need.
The panel is v-scored and no tools are needed to separate the pcb-just break away like a biscuit.
Parts List to make 1 Freeduino
4 LEDCHIPLED_0805 P13, PWR, RX, TX any colour you want
1 MA03-1 SV1 3pin header with shunt
2 PINHD-1X6 J2, JP1 6pin female header
2 PINHD-1X8 J1, J3 8pin female header
5 1K R-EU_R0805 R7, R9, R10, R11, R12
1 1N4004 DIODESMA D1 sma package
1 9V in DC21MMX DC1 2.1mm socket
1 16Mhz CRYSTALHC49U-V Q1 Can use resonator miss C2,C3
2 22pf C-EUC0805 C2, C3 or 27pf depends on xtal
2 47u CPOL-EUD C6, C7 6.3mmDx5.5H base-6.6x6.6mm
8 100n C-EUC0805 C1, C4, C5, C8, C9, C10, C12, CRS
1 100n C-EUC1206 C11 On bottom- can also use 0805 part
1 330 R-EU_R0805 R8 470R or 1k
