Clausing model 8540 horizontal mill

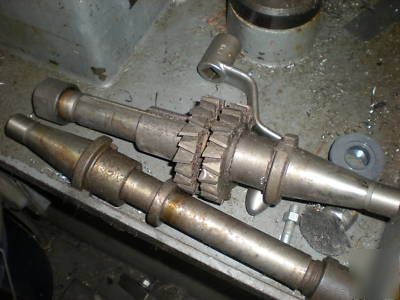

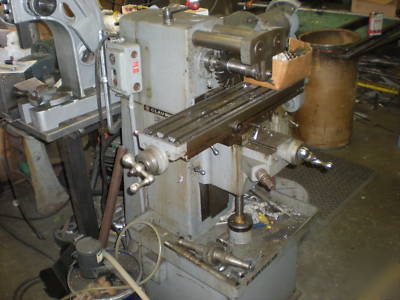

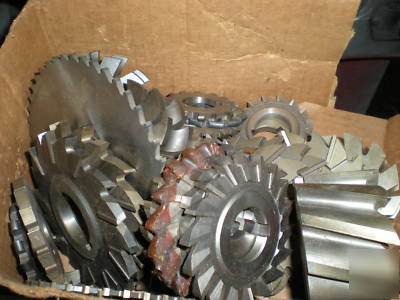

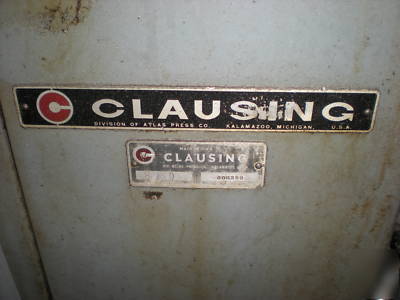

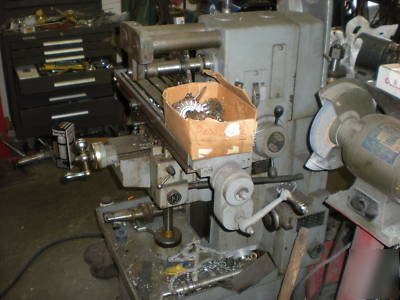

Clausing Model 8540 Horizontal Mill - Serial 800253 - 1 & 1/2 HP 3ph motor - Power feed - Movement is 15 & 3/8" left to right, 5" in and out and 14" vertical. Photocopied manual is included - #30 spindle taper - Variable speed drive goes from 360 to 2000rpm in direct mode and from 52 to 280rpm in back gear mode - 12 different feed speeds from 0.44. ipm to 9.54ipm - table T-slots are 9/16" for 1/2" T-bolt - Max cutter diameter is 6" - Comes with the tooling shown in the pictures - Currently under power - Project it was being used on has been completed.
We will load on a truck you send at no charge or we can give you a freight quote.
