Cnc ac hf electric spindle teknomotor NC35 0.36KW 12K

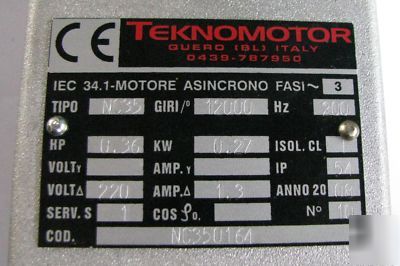

New CNC AC HF Electric Spindle Teknomotor NC35 0.36kW 220V 12000rpm
Spindle is coming in original plastic packaging.
The motors series C35 have been designed to generate a high power with limited overall dimensions. These features, joined to the high rotational
speed, make these motors the best solution for the machinery of wood, aluminium and PVC.
STATOR Three-phase induction motor, insulation class F.
ROTOR Squirrel cage rotor balanced according to ISO 1940 norms: balancing grade 2.5. For special applications we can supply motors

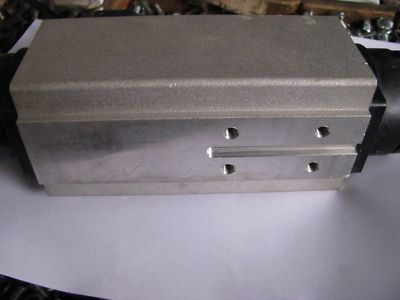

FRAME Self enclosed construction. The frame is obtained from an extruded aluminium bar.
COOLING Shaft driven fan cooling.
BALANCING Standard balancing with half key.
- Nominal rotation speed: 12000 /min;
- Rated input power: 360W (0.36kW), 220-240V;

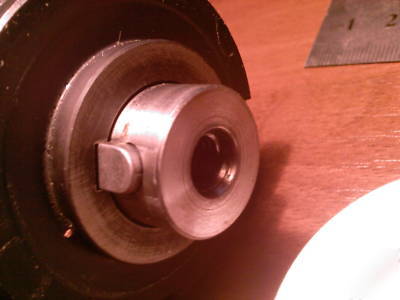

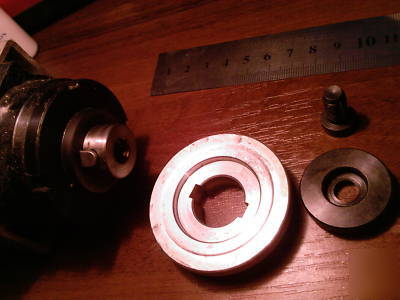

- Double shaft design, shaft is 20mm diameter and 10mm length with
5mm keyway and M8 hole inside, one M8x16mm screw with internal
hex cap and two washers are included on each shaft end;
- Length from end to end - 250mm, 70x65mm width.

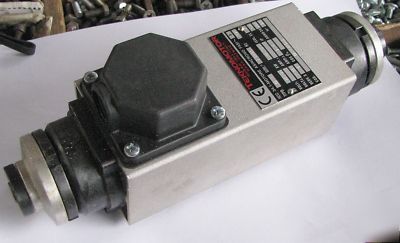

CNC AC HF Electric Spindle Teknomotor NC35 spindle itself.
