Itt pure-flo 1" hast sanitary diaphragm valve w/act ind

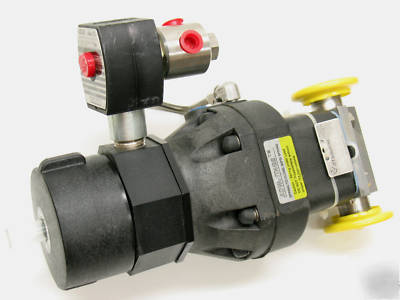

ITEM: ITT PURE-FLO 1" Actuated Diaphragm Valve, Model# 1-SPEC-419-6-36-A209/1.0H4196-3-M7-TM-A209/E99, with Advantage Actuator and Westlock Position Indicator/Switch and 3-Way Solenoid ASCO EF8320G202.
SPEC = Special Material Body: Hastelloy
6 = Interior Finish: 25 Microinch Ra (.6 micrometers) Max. Sanitary Polish
36 = Plastic PAS (Polyarylsulfone) Actuated Bonnet
1.0H4196 = 1" Hastelloy Body w/ Tri-Clamp Ends (419), 25 Microinch Ra (.6 micrometers) Max. Sanitary Polish Interior Finish (6)
3 = Exterior Finish: 35 microinch Ra (.8 micrometers) Max., Welds Scotch Brite
M7 = Bronze Compressor Bonnet Seal A209 = Actuator: Advantage Actuator - Spring-to-Close Reverse Acting, #8 with 90# Spring
E99 = ? (could be a previous designation for the limit switch and solenoid accessory package)
ALSO (not listed on nameplate, but checked according to ITT Pure-Flo "How to Order" Figure Code/Description Book):

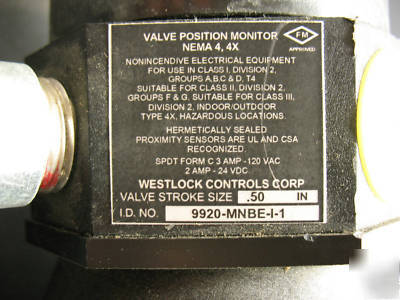

LS18 = Limit Switch w/ Indicator: Westlock 9920-ITT-1 w/ ITT Valve Position Monitor, 0.50" Valve Stroke Size, NEMA 4, 4X Switch SPDT Form C, 120V or 24V
SV8 = ASCO EF8320G202 Solenoid Valve, Stainless Steel, 1/4" NPT, 3-Way, Suitable for Hazardous Locations ("EF" Coil)
CONDITION: Surplus NEW w/ factory dust plugs. Excellent condition throughout, some VERY MINOR scratches on actuator body and solenoid.
