New honeywell STD924-A1A smart pressure transmitter

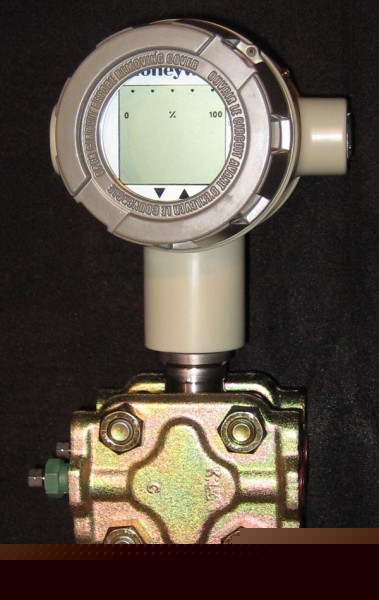

Honeywell STD924-A1A Smart ST 3000 Pressure Transmitter New !!
Smart ST 3000 Pressure Transmitter
Model # STD924-A1A-00000-1C, MB, SM+XXXX
* Model # STD924-A1A-00000-1C, MB, SM+XXXX
* Process Limits -40 to 125 DEG C
* Field Instruments Documentation
* Stick-On Engineering Unit Labels
In 1983, Honeywell introduced the first Smart Pressure Transmitter, the ST 3000 . In 1989, Honeywell launched the first all digital, bi-directional protocol for smart field devices. Today, its ST 3000 Series 900 Differential Pressure Transmitters continue to bring proven smart technology to a wide spectrum of pressure measurement applications, from furnace combustion airflow rate to hydrostatic tank gauging. The ST 3000 S900 Differential Pressure Transmitter can be used with any primary flow element to provide proven, repeatable flow measurement.
All ST 3000 transmitters can provide a 4-20 mA output, Honeywell Digitally Enhanced (DE) output, HART* output, or FOUNDATION Fieldbus output. When digitally integrated with Honeywell s Process Knowledge System , EXPERION PKS ,
ST 3000 instruments provide a more accurate process variable as well as advanced diagnostics.
Honeywell s cost-effective ST 3000 S900 transmitters lead the industry in reliability and stability:
Stability = +/-0.01% per year
Reliability = 470 years MTBF
The devices provide comprehensive self-diagnostics to help users maintain high uptime, meet regulatory requirements, and attain high quality standards. S900 transmitters allow smart performance at analog prices. Accurate, reliable and stable, Series 900 transmitters offer greater turndown ratio than conventional transmitters.
"Honeywell transmitters operating in the digital mode using Honeywell's Digitally Enhanced (DE) protocol make diagnostics available right at the control system's human interface. Equally important, transmitter status information is continuously displayed to alert the operator immediately of a fault condition. Because the process variable (PV) status transmission precedes the PV value, we are guaranteed that a bad PV is not used in a control algorithm. In addition, bi-directional communication provides for remote transmitter configuration directly from the human interface, enabling management of the complete loop.
The ST 3000 transmitter can replace any 4 to 20 mA output transmitter in use today and operates over a standard two-wire system.
The measuring means is a piezoresistive sensor, which actually contains three sensors in one. It contains a differential pressure sensor, a temperature sensor, and a static pressure sensor.
Microprocessor-based electronics provide higher span-turndown ratio, improved temperature and pressure compensation, and improved accuracy.
The transmitter s meter body and electronics housing resist shock, vibration, corrosion, and moisture. The electronics housing contains a compartment for the single-board electronics, which is isolated from an integral junction box. The single-board electronics is replaceable and interchangeable with any other ST 3000 Series 100 or Series 900 model transmitter.
Like other Honeywell transmitters, the ST 3000 features two-way communication between the operator and the transmitter through our Smart Field Configurator (SFC). You can connect the SFC anywhere that you can access the transmitter signal lines.
* Choice of linear or square root output conformity is a simple configuration selection.
* Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.
* Unique piezoresistive sensor automatically compensates input for temperature and static pressure. Added smart features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.
* Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in
* commissioning, start-up, and ongoing maintenance functions.
