Advantech pca-6134P 386SX/486SL industrial cpu isa card

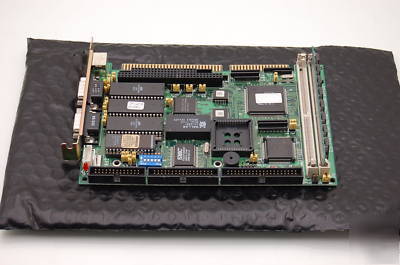

Advantech PCA-6134P 386SX/486SL Industrial CPU ISA Card
Advantech PCA-6134P 386SX/486SLC Industrial CPU ISA Card, Board in excellent condition. This was removed from a working environment and appears in great condition. We have not tested, but it is assumed to be working, and comes with ROR for any issues.
Here are some specs from an online resource:
40MHz 80386SX/80486SLC/80486SLC2
Uses 256Kx36, 1Mx36 or 4Mx36 72-pin SIMMs with access time of 80 ns or less
Support for system and video BIOS of up to 256 KB in 32 KB blocks
Supports up to two IDE (AT bus) hard disk drives. BIOS enabled/disabled
Supports up to two floppy disk drives, 5.25" (360 KB and 1.2 MB) and/or 3.5" (720 KB and 1.44 MB). BIOS enabled/disabled
Enhanced bi-directional parallel port
Configurable to LPT1, LPT2, LPT3 or disabled. Standard female DB-25 connector provided
One serial RS-232 port, one serial RS-232/422/485 port. Ports can be individually configured as COM1, COM2 or disabled
Software programmable ON/OFF. The time-out interval is programmable in 12 levels (0.5 seconds ~ 16 minutes 48 seconds). Your program uses hex 043 and 443 to control the watchdog. The watchdog can reset the system or generate an interrupt.
A PC/104 connector for industry-standard PC/104 modules such as a Flash/RAM/ROM disk module and/or Flat-panel/CRT VGA module
A 6-pin mini-DIN keyboard connector is located on the mounting bracket for easy access. An external keyboard adapter is included. An on-board keyboard pin header connector is also available.
7.3" (L) x 4.8" (W) (185 mm x 122 mm)
