Sanitary centrifugal pump - swagelok / jensen 118 ( )
The sanitary centrifugal pumps in the JENFLO series are manufactured using AISI-316 stainless steel die-pressed steel plate with an electro-polished finish.
The JENFLO series has been specially developed to respond to all hygienic requirements in the food industry. As regards hygiene, reliability and sturdiness, the complete range satisfies all requirements set by the food, dairy, beverage and pharmaceutical industries. Its design allows optimal interchangeability of parts between the different pumps
The rotor or impeller, situated in the housing, rotates solidly fixed to the pump shaft and consists of a given number of blades, depending on the pump model. The impeller blades transmit energy to the fluid in the form of kinetic and pressure energy. The pump is not reversible by simple inversion of the direction of rotation. The direction of rotation is clockwise when the pump is seen from the rear part of the motor.
As a general rule, the standard version of the JENFLO pumps are used to transfer liquids for the food industry. Subject to special design they can be used in concentrators, closed tanks, evaporators, distillation towers, etc.
Special attention has been gien to hygiene and cleaning requirements in the construction of the pump. The number of grooves and dead spaces have been limited to an absolute minimum. The pump can be cleaned easily and thoroughly in either of the two following ways:
1) Without disassembling it, for example: by means of steam or water, referred to as Cleaning In Place (CIP).
2) By easily disassembly of the pump housing, the impeller and the mechanical seal.
MATERIALS USED IN CONSTRUCTION
All pump parts which are in contact with the product are stainless steel, or are made of tasteless and odorless materials. This makes the pump resistant to corrosion and avoids contamination of the liquid being pumped.

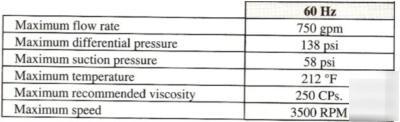

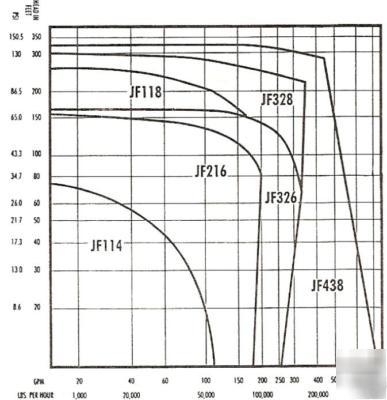

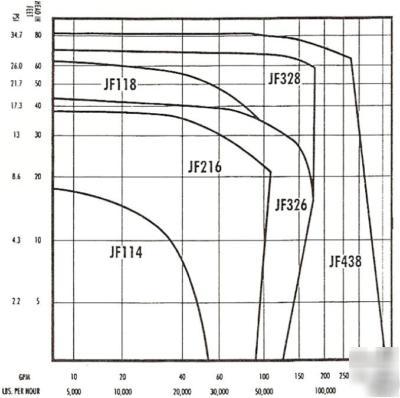

Maximum Flow rate: 750 gpm (SEE "PHOTOS" SECTION FOR FIELD OF APPLICATION CURVES)
Maximum Differential pressure: 138 psi
Maximum suction pressure: 58 psi
Maximum temperature: 212 degrees Farenheit
Maximum recommended viscosity: 250 CPs.

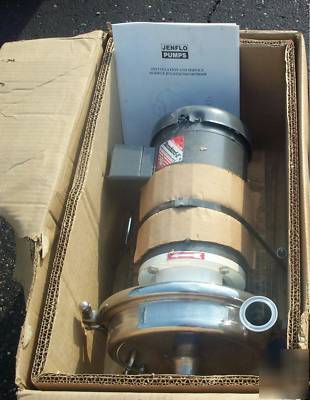

Comes with Installation and Service Manual
