Oriel arc lamp system psu ignitor lamp housing - tested
ORIEL ARC LAMP SYSTEM PSU IGNITOR LAMP HOUSING - TESTED
Item Condition: Used "Fully Tested"
USED-LIKE NEW ORIEL INSTRUMENTS
66055 FAN COOLED 200W LAMP HOUSING
ALSO INCLUDED: 66151 SOCKET ADAPTER
REFLECTOR, LENS, FILTER, AND SHUTTER
All Parts Pulled from Like New Equipment and We Will Test Them
We have the Power Supply Manual in .pdf format and will include a print out with the system, the original ignitor manual is included. No other manuals are included.

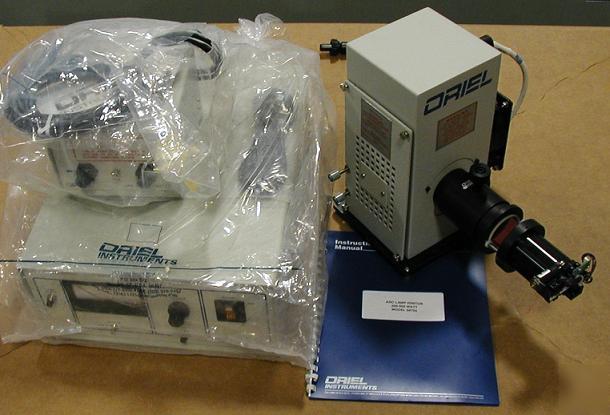

Qty 1 ORIEL INSTRUMENTS 40-200W POWER SUPPLY MODEL 68805
Qty 1 ORIEL INSTRUMENTS FAN COOLED LAMP HOUSING MODEL 66055 SVGA
Qty 1 ORIEL INSTRUMENTS ARC LAMP IGNITOR MODEL 68705
Qty 1 ORIEL INSTRUMENTS SOCKET ADAPTER MODEL 66151
Qty 1 ORIEL INSTRUMENTS LAMP HOUSING REFLECTOR
Qty 1 MANUAL FOR ARC LAMP IGNITOR MODEL 68705
Qty 1 PHOTO COPY OF MANUAL FOR 40-200W POWER SUPPLY MODEL 68805
The Oriel model 68805 arc lamp power supply was designed to meet the needs of the researcher who demands a highly regulated source of current for proper operation of arc lamp light sources. Constant current operation of these sources of radiation is required whenever a radiometric measurement is being made or whenever a highly stable light output is needed.
Arc lamp sources will be operated in constant current mode by this power supply, with the output voltage being dependent on the arc lamp's impedance. The 68805 will provide a constant current up to 11 Amperes with a load voltage range of 0 to 100 volts. A power limit, which limits the product of output voltage and current to 300 watts protects the unit from output overloads. A constant current power supply regulates current even into a short circuit, and the model 68805 is safely limited to 12 Amperes or 300 watts. Also, the inrush current to the lamp is limnited to a maximum of 12 Amperes, and the reduced discharge current minimizes electrode erosion when starting the arc lamp. This power supply includes all of the circuitry to power the lamps, to operate the required external ignitor or ignitor built into Oriel arc lamp housing, and to meter the output parameters.
The following arc lamps may be operated with the model 68805 Arc Lamp Supply: 6251, 6263, 6254, 6255, 6356, 6282, 6281, 6283, 6291, 6292.
Remote capability also includes an input that may be used for external control, modulation, or intensity control.
An interlock function is provided. Unless this interlock is made, the power supply will not operate.
A system under test in our lab:
Office hours are Monday-Friday 8:30am-5:00pm EST.
* US and Canadian issued cards only.
* Only available during business hours
We are also delighted to receive emails if you feel we have done a good job. We appreciate knowing what we're doing right, so we can continue to provide excellent service.
If you require a proforma invoice please let us know and we can provide you with one in PDF format.
The unit has been tested with a lamp as shown in the picture
