birlik double pinch profile roll angle roll

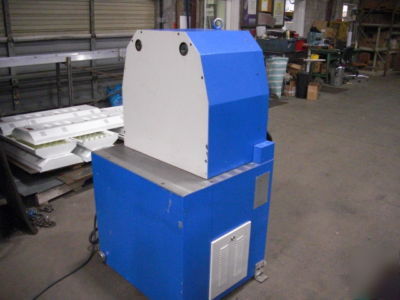

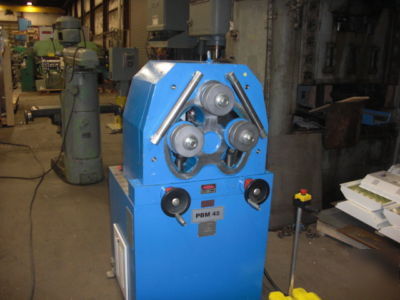

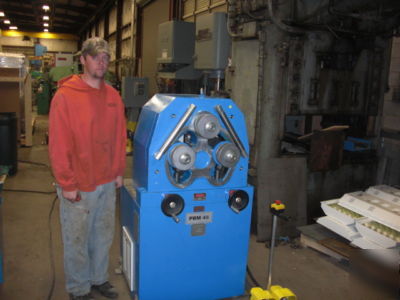

New BIRLIK DOUBLE PINCH PROFILE BENDING MACHINE
Shaft diamiters.............................................. 1.77"
Roll diameters............................................... 6"
Motor power.................................................. 3
Length..................................................... 30"
Width....................................................... 34"
Height...................................................... 63"
Weight.......................................................... 1,545 Lbs
* Mechanical lateral guide rolls

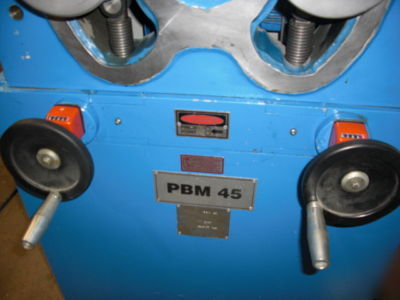

* Analaog read out for side roll
* Horizontal and vertical operation
* Foot pedal with safety device
* Compliance with CE norms regulations
* 2 X 2 X 1/4" ANGLE IRON TO 24" DIAMETER LEG OUT
* 2 X 2 X 1/4" ANGLE IRON TO 32" DIAMETER LEG IN, (REQUIRES SPECIAL LATERAL GUIDE)
* 2" SCHEDULE 40 PIPE TO 40" DIAMETER
* 1.5" SCHEDULE 40 PIPE TO 20" DIAMETER
* 1.5" X 1.5" SOLID SQUARE TO 20" DIAMETER
* 2" X .5" FLAT THE HARD WAY TO 18" DIAMETER
* 3.5" X .5" FLAT THE EASY WAY TO 18" DIAMETER

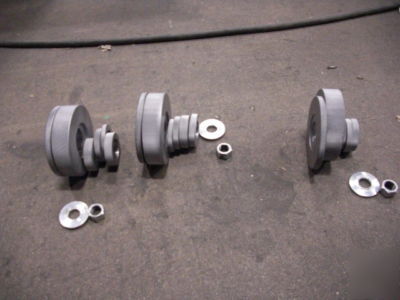

* Special rolls for tubes, profiles. and ect.
* Roll and tolling for hardway beam/channel bending
* Special support rolls for angles
