6" w 18" l jakobsen 25 surface grinder, auto idf, 3X au
6" W 18" L Jakobsen 25 SURFACE GRINDER, AUTO IDF, 3X AU
6" Width 18" Length Jakobsen 25 SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS

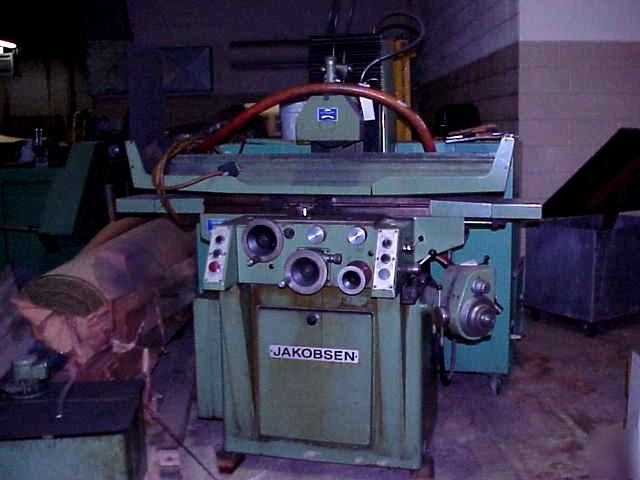

6" X 18" JAKOBSEN HYDRAULIC SURFACE GRINDER
MODEL: SJ618 S/N: DE 1051 NEW: 1982
WIDTH & LENGTH GROUND ................... 6" X 18"
MAX. DISTANCE FROM CENTER OF WHEEL
TO THE TABLE ........................... 16"
STANDARD WHEEL SIZE ..................... 8" DIA. x 1"W
HYDRAULIC LONGITUDINAL TABLE TRAVEL...... 21"
INFINITELY VARIABLE TABLE SPEEDS......... 6' TO 79' FPM
HYDRAULIC TABLE TRAVEL, CROSS............ 9"
AUTO CROSS FEED INCREMENT PER TABLE PASS. 1/16" - 3/4"
CONTINUOUS CROSS SPEED................... 120" IPM
CROSS FEED HANDWHEEL GRADUATION.......... 0.001"
VERTICAL HANDWHEEL GRADUATION............ 0.0001"
AUTOMATIC INCREMENTAL DOWNFEED .......... 0.0001" - .001"
POWER RAPID VERTICAL TRAVERSE RATE ...... 12" IPM
APPRIXIMATE DIMS. ....................... 80" x 48"D x 76"H
APRROXIMATE MACHINE WEIGHT............... 3,100 LBS.
6" X 18" PERMANENT MAGENTEIC CHUCK
HYDRAULIC "OVER-THE-WHEEL" WHEEL DRESSER
EXTERNAL COOLANT SYSTEM FOR WET GRINDING
** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE **
