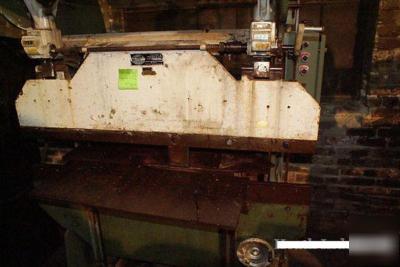

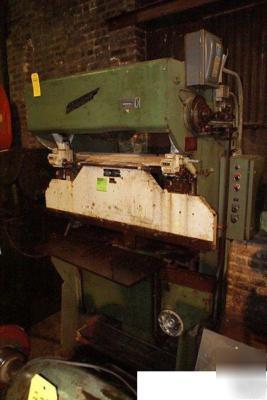

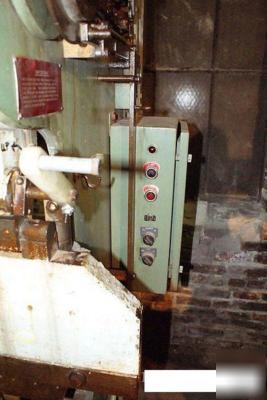

Diacro di-acro hydraulic 17 ton 4' press brake machine
Diacro 48" hydra power Press brake.
Needs treadle pedal and good cleaning
Di-Acro Hydra-Mechanical power Press Brake
Specification....................... Description
USED 4 FT. X 14 GA. DIACRO HYDRA-MECHANICAL PRESS BRAKE
Bending capacity: 4' x 14 ga. mild steel
* Tonnage............................. 17
Length Of Bed & Ram................. 48"
Distance Between Housings........... 36 1/4"
Ram Stroke.......................... 1/2"- 2"
Ram Adjustment...................... 2"
Shut Height......................... 9"
Throat.............................. 6"
Strokes Per Minute (Variable)....... 17- 50
Floor Space......................... 52" x 30"
Weight.............................. 2,400 LBS. Equipped With:
Front Operated Manual Back Gauge table
Manual Ram Adjustment With Indicators
