New 12.1" 6-p patient monitor+printer+capnograph/ETCO2

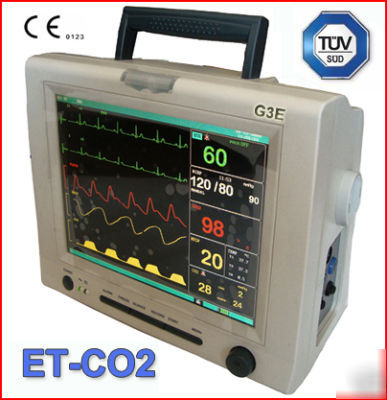

New 12.1" 6-P Patient Monitor+Printer+Capnograph/ETCO2+2TEMP
12.1-inch display 6-parameter Patient Monitor With Printer and ET-CO2+Dual Temp
This device is specifical patient monitor. 6 Parameters(NIBP, SPO2, ECG, PR, RESP, 2-TEMP) and with ET-CO2, together with Printer. of course 2 TEMP ,
the total price is Just US$2425.00 , and will send via DHL. normally 3 or 5 business days to your door.provide the tracking number to you .
Standard parameter: ECG, RESP, NIBP, SpO2, TEMP, PR.
12.1" large-screen color TFT display
Built-in high-capacity battery, up to 4 hours working time
7-lead ECG waveforms display ,big fonts observational interface
Reviewable ECG waveforms, Maximum 240 hours reviewing graphic trends
Digital SpO2 technique, precise measurement for weak perfusion and finger shaking
Arrhythmia and S-T segment analysis and pacemaker detection
Protection against interference from defibrillation and electrosurgical Unit
Applicable for ICU, CCU, operation, adult, pediatrics and neonatal patient
NIBP, SPO2, ECG, PR, RESP, 2-TEMP, Built-in printer, Capnograph/ ETCO2 Optional:
Single/Dual IBP(Invasive blood pressure)
Lead Mode: 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
Lead selection: I, II, III, avR, avL, avF, V,
Lead mode: 3 Leads ( R, L, F or RA, LA, LL)
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, auto
Accuracy : +/- 1% or +/- 1bpm,which great
Differential Input Impedance: > 5 M
Electrode offset potential: +/-300mV
Baseline Recovery: < 3 S After Defi.
ECG Signal Range: +/- 8 m V ( Vp-p )
Calibration Signal: 1 (mV p-p), Accuracy:+/-5%
ST Segment Monitoring Range: Measure and Alarm -2.0 ~ +2.0 mV
Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC,
TACHY, BRADY, MISSED BEATS, PNP, PNC
Differential Input Impedance: >2.5 M
Base line Impedance Range: 0 2.5 K
Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
Accuracy Pressure Maximum Mean error: 5mmHg
Maximum Standard deviation: 8mmHg
Measuring and Alarm Range: 20~300bpm
Measuring and Alarm Range: 0 ~ 50 centigrade
Average Time Constant:<10 Sec.
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
CVP/RAP/LAP/ICP: -10 ~ 40 mmHg
Accuracy : +/-2% or +/-1mmHg, which great
Actualization interval: about 1 Sec
