New * sealed* allen bradley 1747-L541 /c 1747L541 02/10
Rockwell Automation > PLC & HMI > Controllers > SLC 500 > 1747-L541/C
Allen-Bradley 1747-L541 SLC 500 SLC 5/04 CPU Controller, 16K Memory, DH+ & RS-232 Communication Ports, Series C
1747-L541 SLC 5/04 Processor, User Memory, Max: 16K words total (12K words for data or prog., 4K words for data only); Number of I/O: 4096 in + 4096 out absolute maximum; Local Analog I/O, Max: 480; Program Scan Time/Kword: 0.9 ms (typ); I/O Scan Time: 0.225 ms (typ); No. of Local I/O Chassis, Max: 3; No. of I/O Module Slots in the Local I/O Chassis, Max: 30; Communication Ports : DH+ & RS-232 (RS-232 port can also be configured for a DH-485 network); Backup Memory: Flash; Battery-backed RAM: Standard.
With this 1747-L541 processor, a 1747-SN Remote I/O Scanner module can be used to configure I/O on a Universal Remote I/O link and/or add a 1747-SDN DeviceNet Scanner module to configure I/O on a DeviceNet network. 32 I/O chassis per Universal Remote I/O scanner can be configured using complementary I/O. Without complementary I/O, 16 I/O chassis per Universal Remote I/O scanner can be configured. With the DeviceNet scanner, a maximum of 63 DeviceNet devices over the DeviceNet network can be addressed.

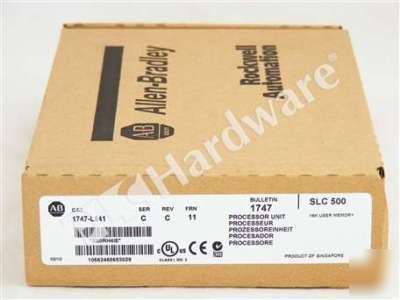

One New Factory Sealed Allen Bradley 1747-L541 Series C, SLC 500 SLC 5/04 CPU Controller, 16K Memory, DH+ & RS-232 Communication Ports.
The unit is Series C, Rev. C, FRN 11, Pkg Date 02/10.
