26665170 | 17†12 speed floor drill press

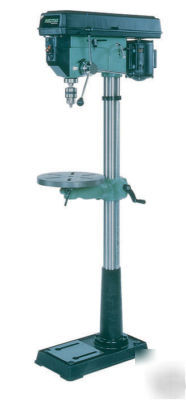

26665170 | 17 12 Speed Floor Drill Press
* Table tilts 45 on both sides.
* Rack and pinion table adjustment.
* On/Off switch located on the front of the drill press head for convenience and safety.
* Slotted work table and base allow easy clamping of work holders.
* Includes drill chuck, motor, pulley belt and light.
* Swing . . 17
* Drilling capacity .. . . 5/8
* Chuck size .. 5/8
* Spindle travel .. ... 3-3/8
* Spindle distance to base ... 50
* Spindle distance to table . ... 30-1/2
* Table size ... 13-3/4 Rd.
* Spindle taper .. . 3JT
* Column diameter . .... 3-1/8
* Range of speeds (RPM) .. 240-3,800(16)
* Motor .. HP
* Voltage . .. 110V, 1
* Weight ... 170 lbs.
The manufacturer is Frejoth-Rexon
The manufacturers item number is DF19-0101
We offer 1 year warranty on parts and 90 day warranty on electrical.
