Hp 54701A active probe for 54720D system .6 pf 100K ohm

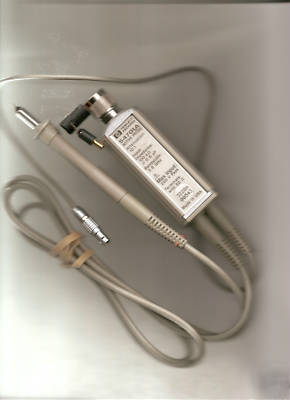

HP 54701A active probe for use with the 50 ohm inputs of the 54720A/D oscilloscope plug-ins. Input impedance at the tip is 100K ohm and .6 pf. Bandwidth is 2.5 GHz. Probe power is supplied by the 54720A/D plug-ins. See the pictures. Probe response is shown.What you see is what you get.

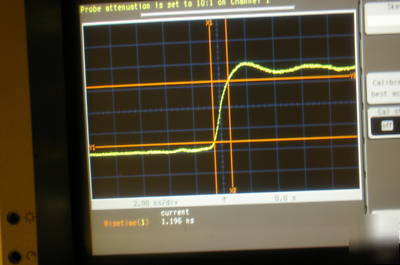

Electronic condition I have tested this probe and show the pulse response to the 54720D calibrator.
Cosmetic condition The probe is in very good condition. No accessories or ground lead. I will add two spare needle tips and the SMB adapter.
Of course not all units can be repaired. I disassemble these units for parts. Agilent has classified many of these units as obsolete and parts are not available from Agilent. I have accumulated many of the obsolete parts and many are listed in my store watronics92 I calibrate any unit I sell, but I do not have an ISO certified lab. Any unit I sell will pass calibration at an ISO calibration lab.
