New bird at-500 2 to 520 mhz antenna tester

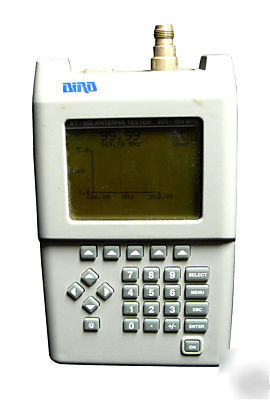

New Bird AT-500 2 to 520 MHz Antenna Tester
Bird AT Series - AT-500 & AT-800
AT-500 2 to 520 MHz AT-800 806 to 960 MHz
Calculated from Return Loss Rho accuracy
N(F) supplied. N, TNC, UHF, BNC, male or female available
Single Frequency Point 5 readings per second typical
Frequency Sweep 1 sweep per second typical
Sensitivity Fullscale deflection and 0.22 V/m @
400 MHz using supplied antenna
Power Supply Rechargeable NiCAD battery system. Unit may be re-charged while operating using a wall adapter (included)
Dimensions 8 x 4-5/8 x 1-3/4 (204 x 118 x 42 mm)
Temperature, Operating 0 to 50 C (32 to 122 F) Temperature, Storage -40 to +71 C (-40 to +160 F)
Humidity 95% 5% max (noncondensing)
Compliance Unit complies with MIL-T-28800 Class 5 except for temperature and humidity. Unit is CE-compliant and RoHS compliant.
Bird AT-Series Antenna Testers provide a cost-effective, fast, graphical way of determining the quality of mobile and base station antennas.
Rugged, easy-to-use, hand-held design with extended battery life makes it ideal
Tests the system in VSWR, Return Loss, Match Efficiency, or Reflection Coefficient (Rho)
Single frequency readings and frequency sweeps allow for everything from pinpointests to system optimization and tuning.
Can save up to 12 traces for comparison and tracking over time
RS232 Interface allows communication with a PC for saving traces using the optional software.
