New two sets of X1/X10 oscilloscope switch probe kits

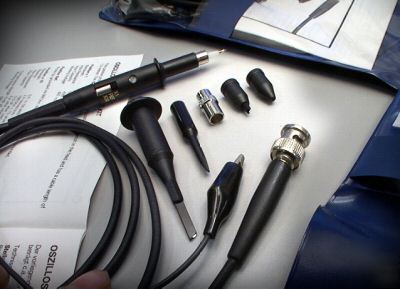

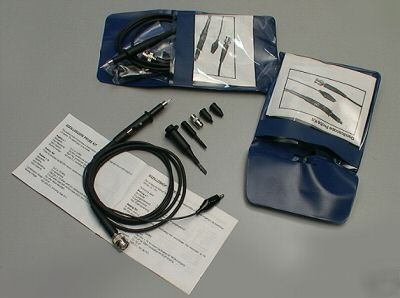

These are the standard X1 and X10 positions (switchable). Each adaptor kit has a selection of probe fitments, as shown in the photograph.
Bandwidth: D.C. to 10 MHz. Input Resistance: 1M.0hm (oscilloscope input). Input Capacity: 40pF. plus oscilloscope capacity.Working voltage: 600 volts D.C. (including Peack A.C.).
Bandwidth: D.C. to 150 MHz. Risetime: 2.4 nanoseconds. Input Resistance: 10M.0hm +- 1% when used with oscilloscopes with a 1M.0hm input. Input Capacity: 12.0 pF when used with oscilloscopes which have a 20 pF input capacity. For other values graph is included. Compensation Range: 10-60 pF. Working Voltage: 600 volts D.C. (including Peak A.C.).
Position Ref: Probe tip grounded via 9M.0hm resistor, oscilloscope input grounded.
