Philips PM6303A automatic rcl meter c/w PM9542A adaptor

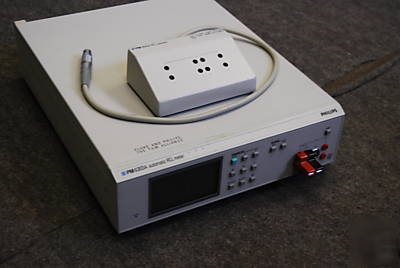

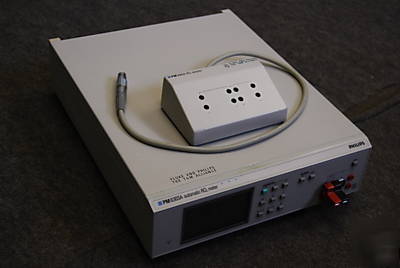

Philips PM6303A Automatic RCL Meter C/W PM9542A RCL Adaptor
The PM 6303A is quick and simple to operate, on the manufacturing floor as a quality assurance tool or in the service lab for quick tests of a wide variety of components. Its simple operation and 0.25% basic accuracy make the PM 6303A equally at home in the classroom for education and training environments.
Test frequency accuracy 0.025%
Basic measurement accuracy 0.25% 1 digit
Capacitance C 0.0 pF to 100 mF
Dissipation factor D 0.002 to 500
7 different equivalent circuit diagrams
Equivalent circuit Parallel for R+C diagram Serial for R+L
Read-out Dominant or secondary parameter
Equivalent circuit Parallel or serial diagram selectable
Open circuit Open circuit compensation Z > 100 k
Short circuit Short circuit compensation Z < 1
Stored settings (non-volatile memory)
Front panel settings 1 (trim figures included)
Operating temparature 0 C to 50 C
Storage temparature -40 C to 70 C
Power requirements 100/120/220/240V 10%
EMC According to CE regulation
EN 50082-1, inclusive IEC801-2,-3,-4
Safety According to CEregulation 73/23 EN61010-1 CAT II,
Pollution Degree 2 Warm-up time 5 minutes
This unit is used but in excellent cosmetic condition and sold fully checked and working with operator/user manual.
