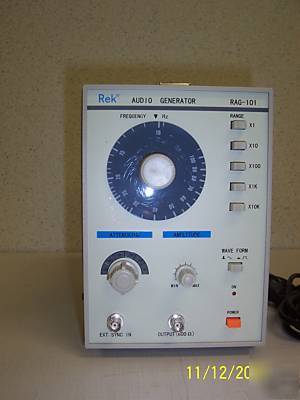

Audio/ low frequency signal generator (10HZ-1MHZ)RAG101
General description: RAG-101 low frequency signal generator can generate 10Hz 1MHz test signal with low distortion, It attenuate gradually as 10dB from 0dB to 60dB, It is popular with manufactures repair staffs and electronic enthusiast. Synchronization signal terminals control the consuming signal with a tiny control signal.
Reliable circuitry Insure high stability and accuracy.
Easy operation on vertical type panel assembling.
Frequency range from 10Hz to 1MHz selectable in 5 ranges are calibrated with single-scale graduations.
More than 5V rms at no load and more than 2.8V rms on 600 loading (Sine Wave). Output level can be adjusted by a 10dB-step, 6 range attenuator and a level adjuster.
Sine wave and square waves available.
Output Voltage : 5V rms or more
Output Distortion: 400Hz-20KHz, 0.1% or less (X100 range for 1KHz)
Output Flatness: 1.5dB (refer to 1KHz)
Output Voltage:10V p.p or more
Duty Ratio: 50% 5%(refer to 1KHz)
External Synchronization Characteristics
Range 3% of oscillator frequency
Input Impedance: 10K approximate
Attenuator: 0dB, -10dB, -20dB, -30dB, -40dB and -50dB in 6 steps (accuracy +1dB at 600 load)
Name:RAG-101 LOW FREQUENCY SIGNAL GENERATOR
